DI035N10PT-AQ
lmages are for reference only.DI035N10PT-AQ
MOSFET POWERQFN 3X3 N 100V 35A 0
Datasheet8-PowerWDFN
34,893 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 100 V 35A (Tc) 25W (Tc) Surface Mount 8-QFN (3x3)
DI035N10PT-AQ
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | Not applicable |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 7A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1220 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 25W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-QFN (3x3) |
| Package / Case | 8-PowerWDFN |
| Base Product Number | DI035N10 |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

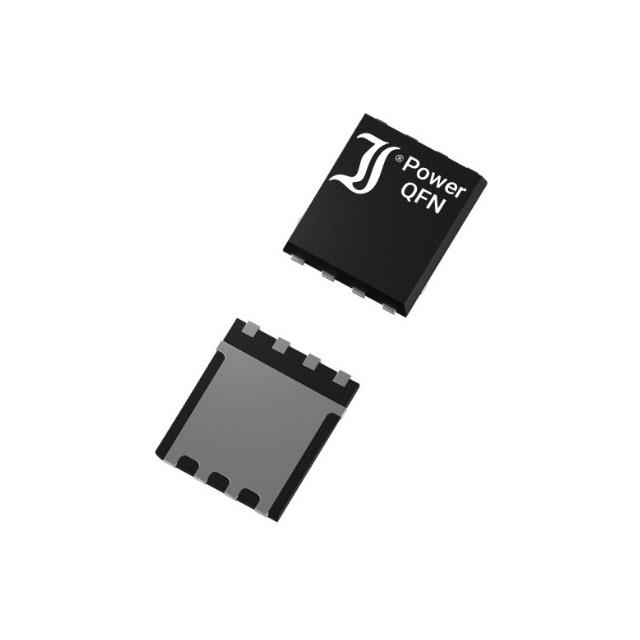

| Part Number | DI035N10PT | DI001N65PTK | DI001N65PTK-AQ | DI005N03PW-AQ |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | Not applicable | Not applicable | ||
| Description | MOSFET POWERQFN 3X3 N 100V 35A 0 | MOSFET POWERQFN 3X3 N 650V | MOSFET POWERQFN 3X3 N 650V | MOSFET POWERQFN 2X2 30V 0.02OHM |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
