Product CatalogPart Number
DI035P02PT
Manufacturer
Diotec SemiconductorDescription
MOSFET POWERQFN 3X3 P -20V
Datasheet
DatasheetPackage
8-PowerVDFN
In Stock
27,887 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DI035P02PT
DI035P02PT
lmages are for reference only.Payment Methods
Delivery Services
P-Channel 20 V 35A (Tc) 52W (Tc) Surface Mount 8-QFN (3x3)
Quick Inquiry
DI035P02PT
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.9mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 6850 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 52W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-QFN (3x3) |
| Package / Case | 8-PowerVDFN |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 58 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

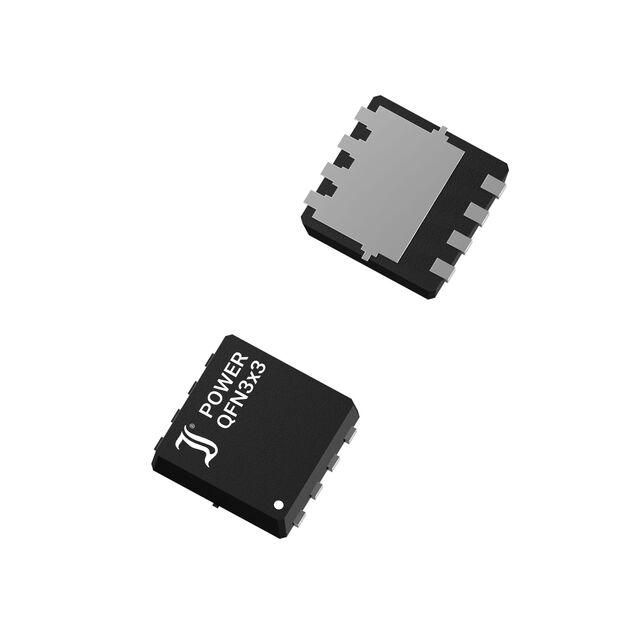

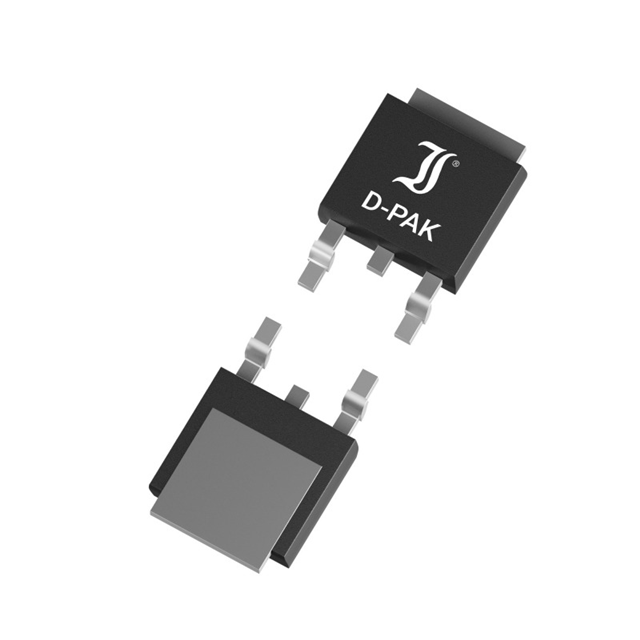

| Part Number | DI035P04PT | DI035P04PT-AQ | DI030N03D1 | DI032N03PTK |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | Not applicable | Not applicable | ROHS3 Compliant | |
| Description | MOSFET POWERQFN 3X3 P -40V -35A | MOSFET, POWERQFN 3X3, -40V, -35A | MOSFET DPAK N 30V 0.01OHM 175C | MOSFET POWERQFN 3X3 N 30V |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
