Product CatalogPart Number
DMN3018SFG-7
Manufacturer
Diodes IncorporatedDescription
MOSFET N-CH 30V 8.5A PWRDI3333-8
Datasheet
DatasheetPackage
8-PowerVDFN
In Stock
76,830 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DMN3018SFG-7
DMN3018SFG-7

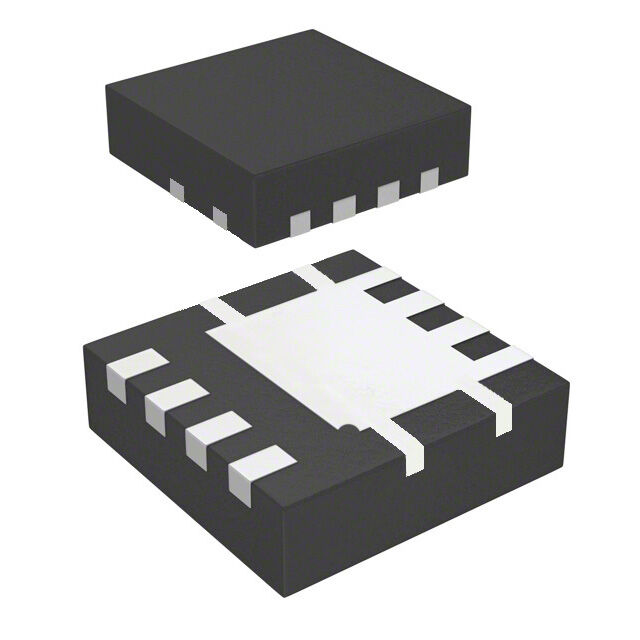

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 30 V 8.5A (Ta) 1W (Ta) Surface Mount POWERDI3333-8
Quick Inquiry
DMN3018SFG-7
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 8.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 21mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 697 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | POWERDI3333-8 |
| Package / Case | 8-PowerVDFN |
| Base Product Number | DMN3018 |
| Gate Charge (Qg) (Max) @ Vgs | 13.2 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | DMN3018SFG-13 | DMN3018SFGQ-13 | DMN3018SFGQ-7 | DMN3010LFG-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 30V 8.5A PWRDI3333-8 | MOSFET N-CH 30V 8.5A PWRDI3333-8 | MOSFET N-CH 30V 8.5A PWRDI3333-8 | MOSFET N-CH 30V 11A PWRDI3333 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
