DMN3025LFG-13
lmages are for reference only.DMN3025LFG-13
MOSFET N-CH 30V 7.5A PWRDI3333-8
Datasheet8-PowerVDFN
37,858 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 7.5A (Ta) 2W (Ta) Surface Mount POWERDI3333-8
DMN3025LFG-13
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 7.8A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 605 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | POWERDI3333-8 |
| Package / Case | 8-PowerVDFN |
| Base Product Number | DMN3025 |
| Gate Charge (Qg) (Max) @ Vgs | 11.6 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

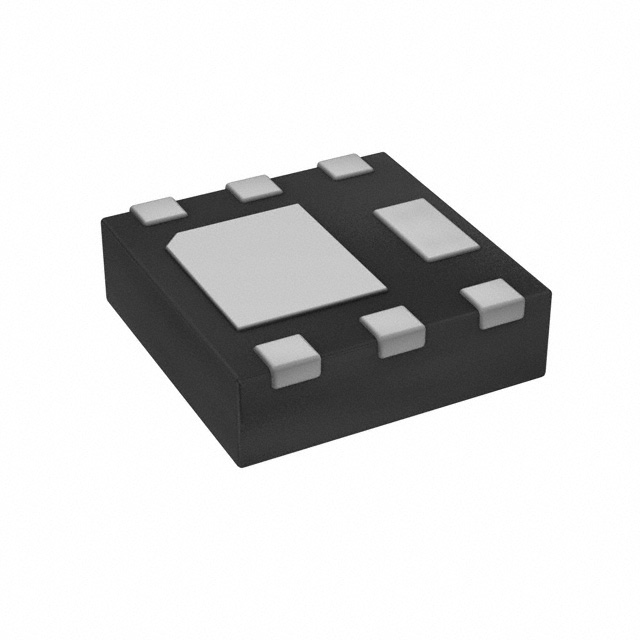

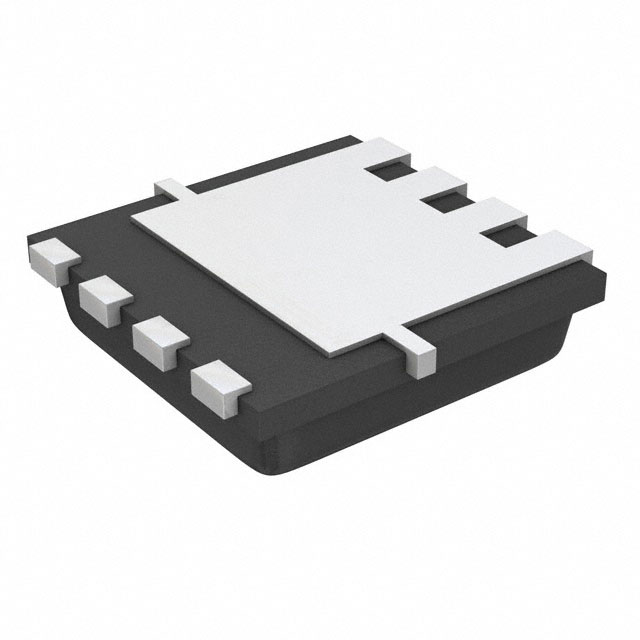

| Part Number | DMN3025LFG-7 | DMN3025LFDF-13 | DMN3025LFDF-7 | DMN3025LFV-13 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N CH 30V 7.5A POWERDI | MOSFET N-CH 30V 9.9A 6UDFN | MOSFET N-CH 30V 9.9A 6UDFN | MOSFET N-CH 30V 25A POWERDI3333 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
