DPX205850DT-4054B5
lmages are for reference only.DPX205850DT-4054B5
MULTILAYER DPX FOR WLAN/GPS/5G
Datasheet0805 (2012 Metric), 6 PC Pad
37,927 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diplexer 698MHz ~ 2.17GHz / 2.4GHz ~ 5.85GHz 0805 (2012 Metric), 6 PC Pad
DPX205850DT-4054B5
| Category | RF and Wireless - RF Multiplexers - |
| Manufacturer | TDK Corporation |
| Series | DPX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Diplexer |
| Frequency Bands (Low / High) | 698MHz ~ 2.17GHz / 2.4GHz ~ 5.85GHz |
| Low Band Attenuation (min / max dB) | 25.00dB / 36.00dB |
| High Band Attenuation (min / max dB) | 12.00dB / 23.00dB |
| Return Loss (Low Band / High Band) | 10.0dB / 10.0dB |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

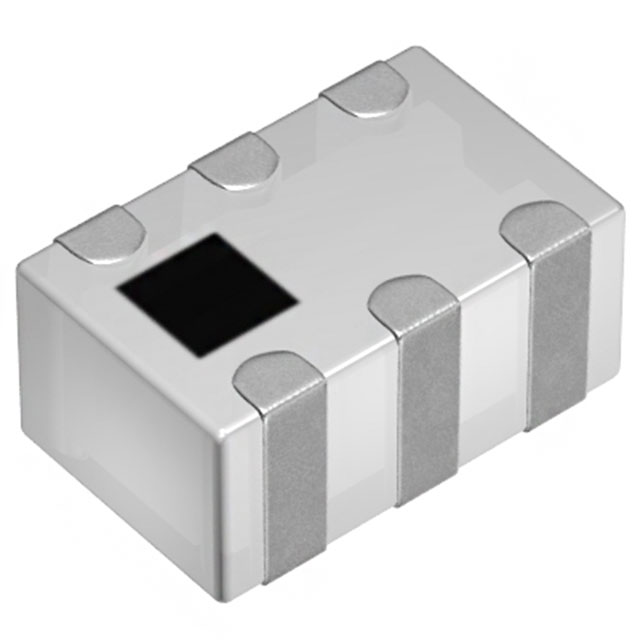

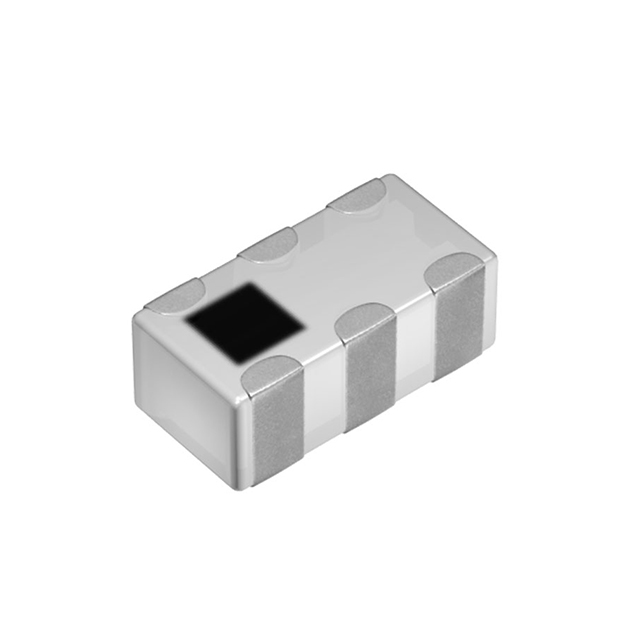

| Part Number | DPX205850DT-4054B1 | DPX205850DT-4054B1 | DPX205850DT-4054B5 | DPX205850DT-4052B2 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MULTILAYER DIPLEXER FOR 800 - 21 | MULTILAYER DIPLEXER FOR 800 - 21 | MULTILAYER DPX FOR WLAN/GPS/5G | RF DIPLEXER 0805 6 PC PAD |
| Series | DPX | DPX | DPX | DPX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
