DSC8104AI2
lmages are for reference only.DSC8104AI2
MEMS OSC PROG BLANK 10MHZ-460MHZ
Datasheet4-SMD, No Lead Exposed Pad
52,274 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
XO (Standard) HCSL 10 MHz ~ 460 MHz Programmable Oscillator 2.25V ~ 3.6V Standby 4-SMD, No Lead Exposed Pad
DSC8104AI2
| Category | Crystals, Oscillators, Resonators - Programmable Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC8104 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Available Frequency Range | 10 MHz ~ 460 MHz |
| Function | Standby |
| Output | HCSL |
| Voltage - Supply | 2.25V ~ 3.6V |
| Frequency Stability | ±25ppm |
| Frequency Stability (Total) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 95µA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | DSC8104 |
| Product Attribute |  |
 |
 |
 |

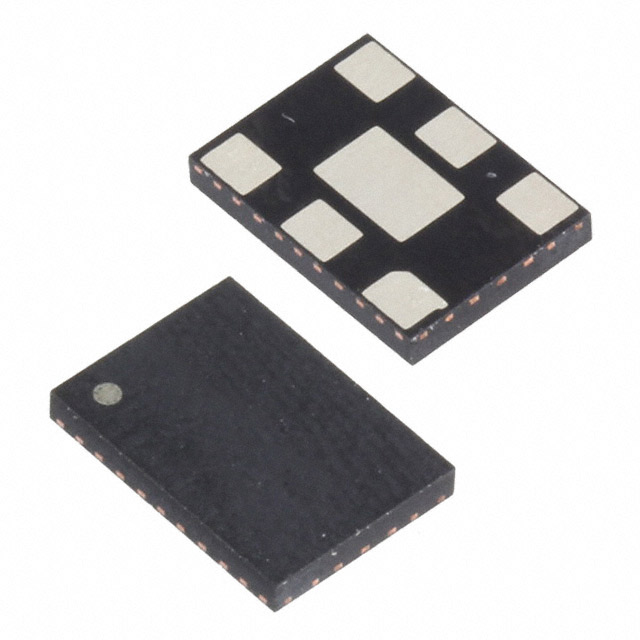

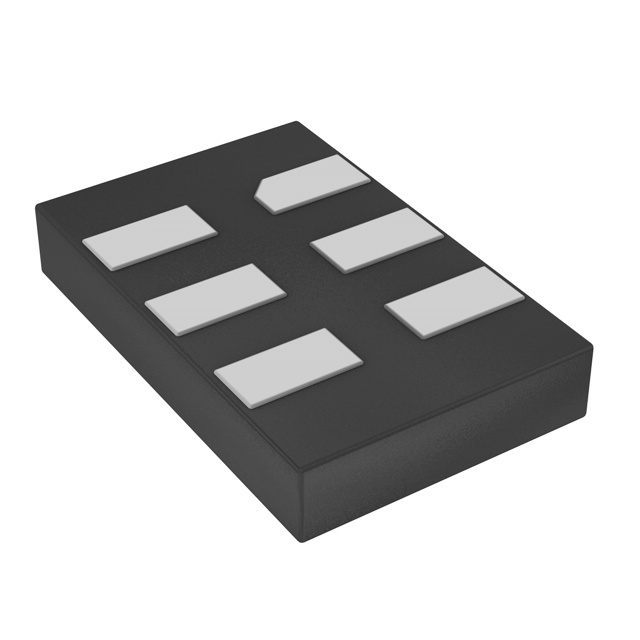

| Part Number | DSC8104AI5 | DSC8104AI5-PROGRAMMABLE | DSC8104BI2 | DSC8104BI2-PROGRAMMABLE |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC PROG BLANK 10MHZ-460MHZ | MEMS OSC PROG XO HCSL 2.25-3.6V | MEMS OSC PROG BLANK 10MHZ-460MHZ | MEMS OSC PROG XO HCSL 2.25-3.6V |
| Series | DSC8104 | DSC8104 | DSC8104 | DSC8104 |
| Packaging | Tube | Tube | Tube | Tube |
