E36D101LPN222TA54U
lmages are for reference only.Payment Methods
Delivery Services
2200 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
E36D101LPN222TA54U
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U36D |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2200 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
|

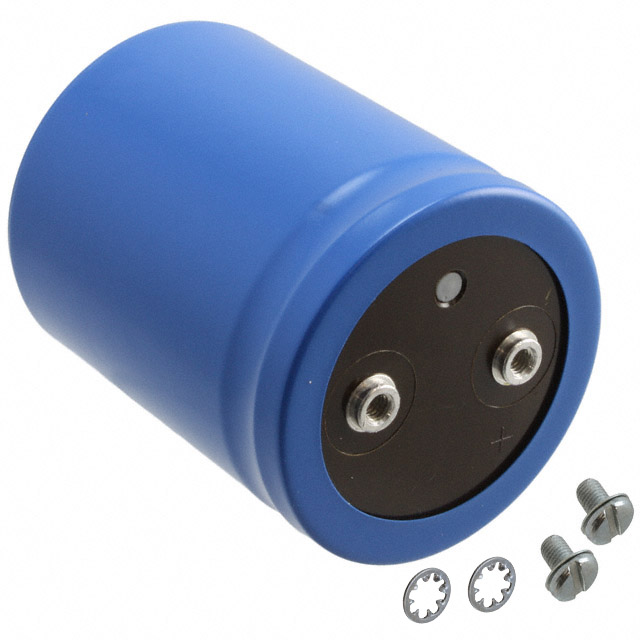

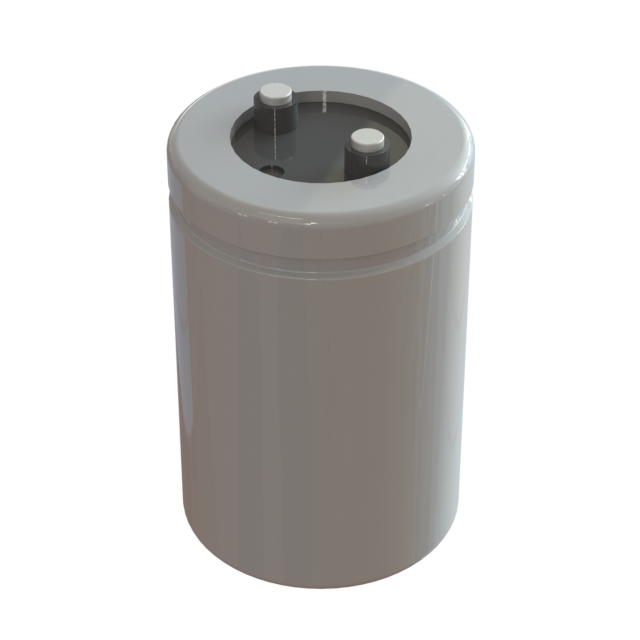

| Part Number | E36D101LPN222TA54M | E36D101LPN223TDA5U | E36D101LPN223TDB7M | E36D101LPN223TDB7N |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 2200UF 100V SCREW CHAS | CAP ALUM 22000UF 100V SCREW CHAS | CAP ALUM 22000UF 100V SCREW CHAS | CAP ALUM 22000UF 100V SCREW CHAS |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
