ECQ-B2153JF
lmages are for reference only.ECQ-B2153JF
CAP FILM 0.015UF 5% 200VDC RAD
DatasheetRadial
45,082 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.015 µF Film Capacitor 200V Polyester Radial
ECQ-B2153JF
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECQ-B(F) |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 0.015 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 200V |
| Dielectric Material | Polyester |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.433" L x 0.217" W (11.00mm x 5.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.295" (7.50mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECQ-B |
| Product Attribute |  |
|
 |
 |

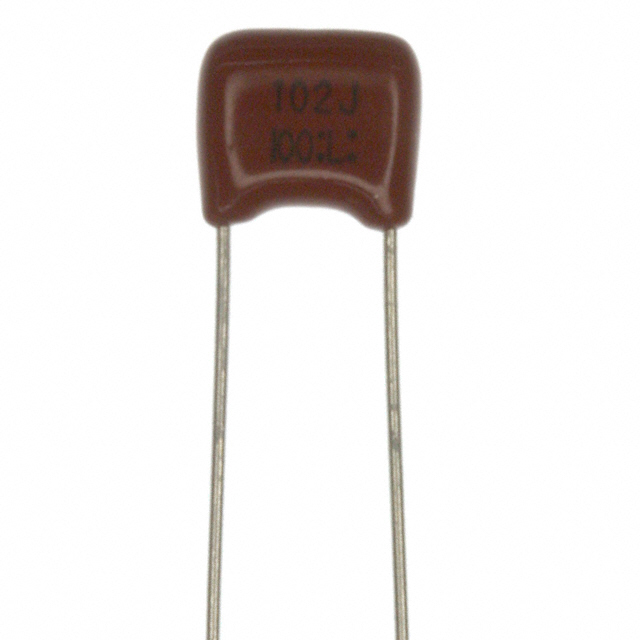

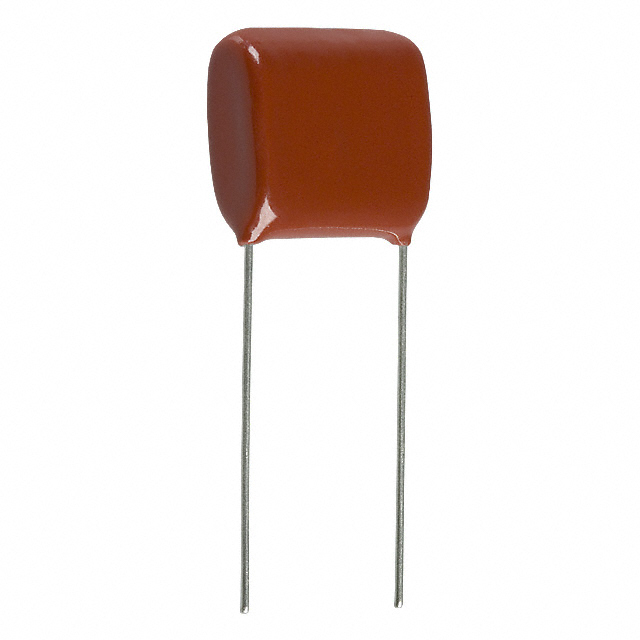

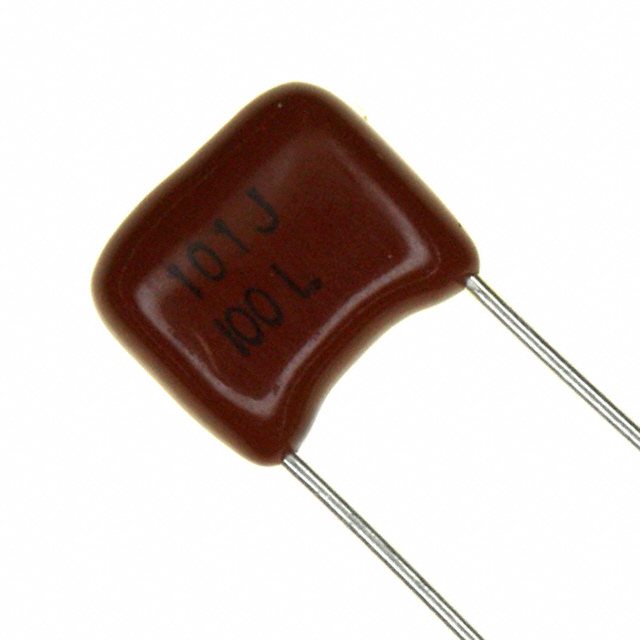

| Part Number | ECQ-B2154JF | ECQ-B2154JF | ECQ-B1101JF | ECQ-B1102JF |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP FILM 0.15UF 5% 200VDC RADIAL | CAP FILM 0.15UF 5% 200VDC RADIAL | CAP FILM 100PF 5% 100VDC RADIAL | CAP FILM 1000PF 5% 100VDC RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
