ECW-F2475JA
lmages are for reference only.ECW-F2475JA
CAP FILM 4.7UF 5% 250VDC RADIAL
DatasheetRadial
46,223 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µF Film Capacitor 125V 250V Polypropylene (PP), Metallized Radial
ECW-F2475JA
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(A) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 4.7 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 250V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.937" L x 0.583" W (23.80mm x 14.80mm) |
| Height - Seated (Max) | 0.870" (22.10mm) |
| Termination | PC Pins |
| Lead Spacing | 0.787" (20.00mm) |
| Applications | High Frequency, Switching |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | ECW-F2475 |
| Product Attribute |  |
 |
 |
 |

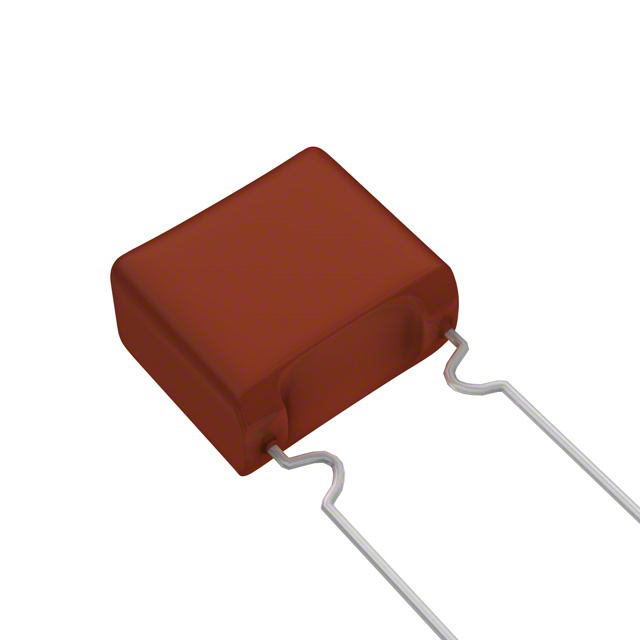

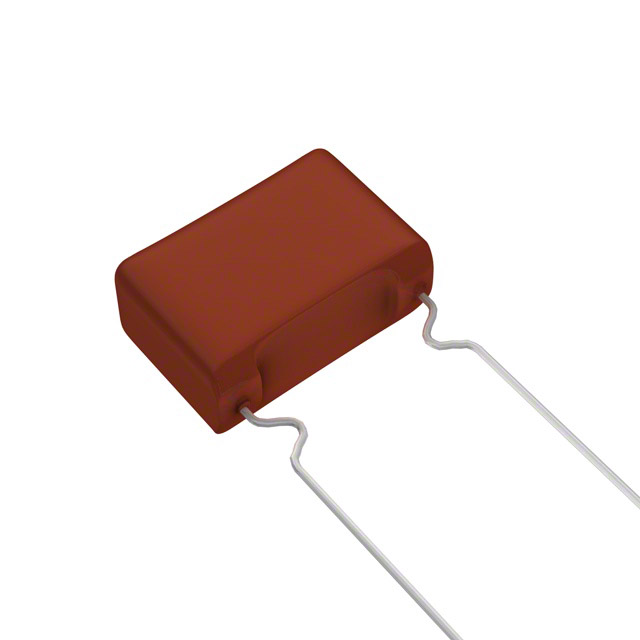

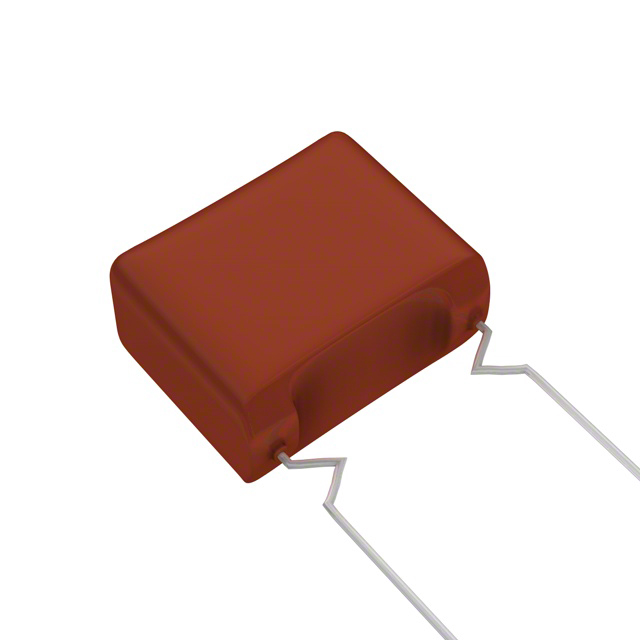

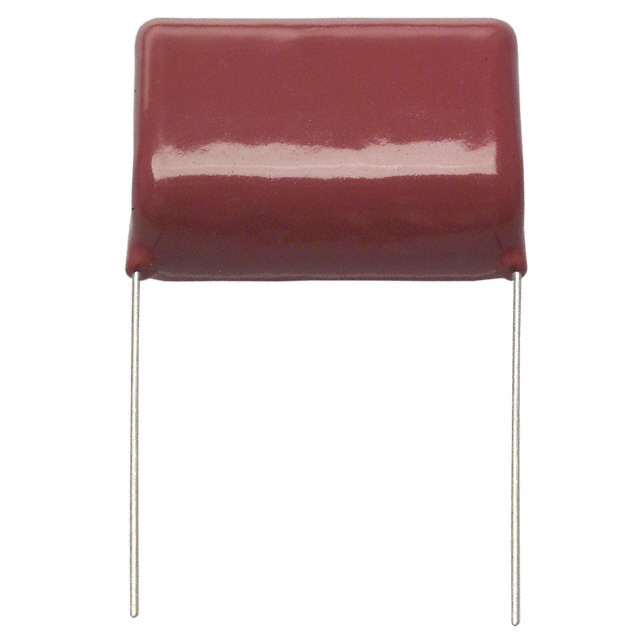

| Part Number | ECW-F2475JAB | ECW-F2475JAQ | ECW-F2475JB | ECW-F2474HAB |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CAP FILM 4.7UF 5% 250VDC RADIAL | CAP FILM 4.7UF 5% 250VDC RADIAL | CAP FILM 4.7UF 5% 250VDC RADIAL | CAP FILM 0.47UF 3% 250VDC RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
