EMDD500G102M1GV001E

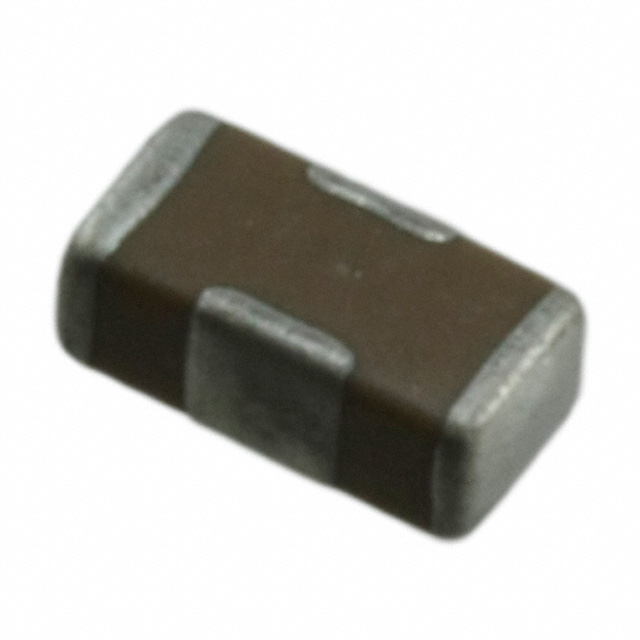

lmages are for reference only.EMDD500G102M1GV001E
CAP CER 1000PF 50V C0G/NP0 1206
Datasheet1206 (3216 Metric)
95,317 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 pF ±20% 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
EMDD500G102M1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Johanson Dielectrics Inc. |
| Series | X2Y® |
| Capacitance | 1000 pF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (X2Y) |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.124" L x 0.063" W (3.15mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.050" (1.27mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EMDD100W474M1GV001E | EMDD101G102M1GV001E | EMDD101W103M1GV001E | EMDD101W104M1GV001B |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.47UF 10V X7R 1206 | CAP CER 1000PF 100V C0G/NP0 1206 | CAP CER 10000PF 100V X7R 1206 | CAP CER 0.1UF 100V X7R 1206 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
