Product CatalogPart Number
ESDLC5V0D9B-TP
Manufacturer
Micro Commercial CoDescription
TVS DIODE 5VWM SOD923
Datasheet
DatasheetPackage
SOD-923
In Stock
76,255 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ESDLC5V0D9B-TP
ESDLC5V0D9B-TP
lmages are for reference only.Payment Methods
Delivery Services
Clamp Ipp Tvs Diode Surface Mount SOD-923
Quick Inquiry
ESDLC5V0D9B-TP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | 80W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 2.1pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
| Base Product Number | ESDLC5 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | ESDLC5V0AE2-TP | ESDLC5V0AE3-TP | ESDLC5V0C2-TP | ESDLC5V0D3-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5VWM 15VC 0201-A | TVS DIODE 5VWM 12VC 0201-C | TVS DIODE 5VWM 26VC SOT23 | TVS DIODE 5VWM 32VC SOD323 |
| Series | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
ESDLC0502P2-TP
Micro Commercial Co
ESDLC0502P6-TP
Micro Commercial Co
ESDLC0504P3-TP
Micro Commercial Co
ESDLC0524DFN10-TP
Micro Commercial Co
ESDLC0524P3-TP
Micro Commercial Co
ESDLC0544P5-TP
Micro Commercial Co
ESDLC0554P3-TP
Micro Commercial Co
ESDLC12VAE2-TP
Micro Commercial Co
ESDLC12VD3-TP
Micro Commercial Co
ESDLC12VD3B-TP
Micro Commercial Co

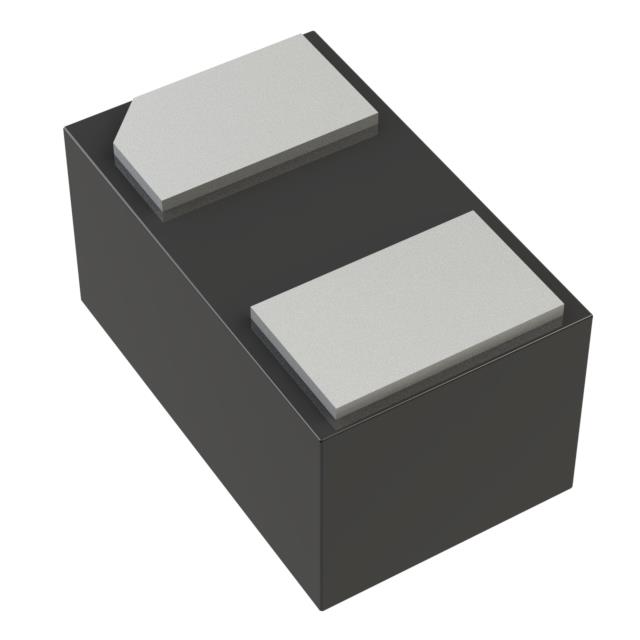

ESDLC12VLB-TP
Micro Commercial Co
ESDLC12VLBHE3-TP
Micro Commercial Co
ESDLC15VLB-TP
Micro Commercial Co

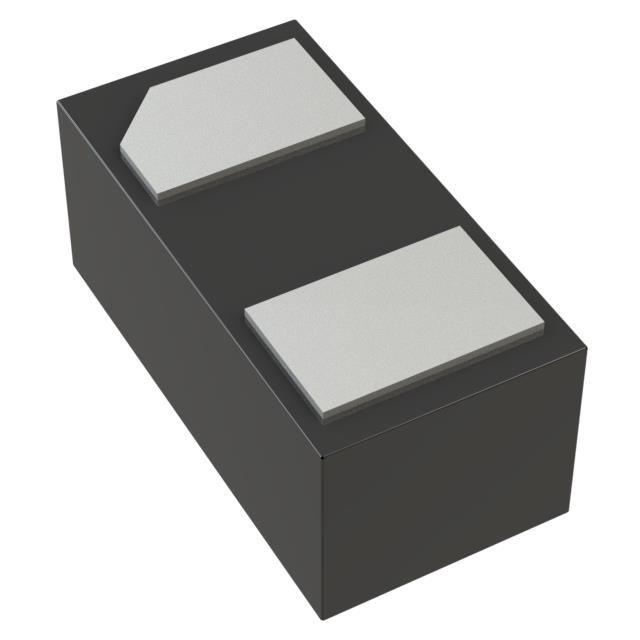

ESDLC18VAE2-TP
Micro Commercial Co
ESDLC24VD3-TP
Micro Commercial Co
ESDLC24VD3B-TP
Micro Commercial Co
ESDLC2504P8-TP
Micro Commercial Co

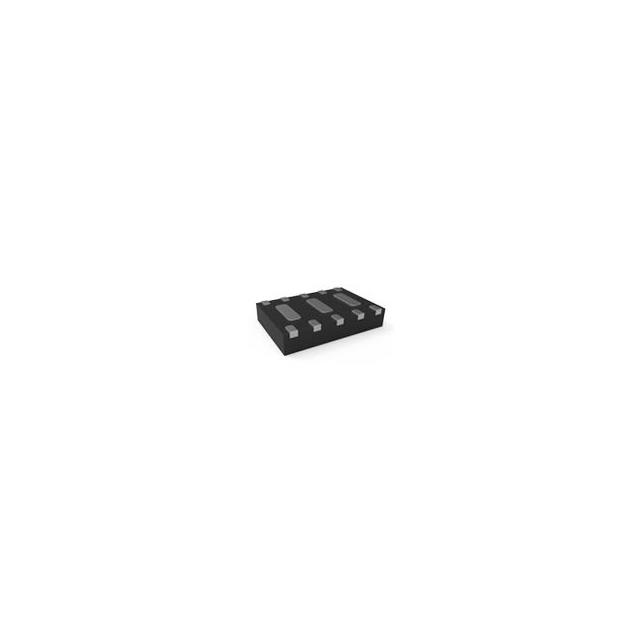

ESDLC2504P9-TP
