ETQ-P5M100YFK
lmages are for reference only.ETQ-P5M100YFK
FIXED IND 10UH 6.7A 37 MOHM SMD
Datasheet2-SMD, J-Lead
92,511 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Shielded Drum Core, Wirewound Inductor 6.7 A 37mOhm Max 2-SMD, J-Lead
ETQ-P5M100YFK
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Panasonic Electronic Components |
| Series | PCC-M0854M |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.7 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Shielded |
| DC Resistance (DCR) | 37mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Supplier Device Package | - |
| Size / Dimension | 0.335" L x 0.315" W (8.50mm x 8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Base Product Number | ETQ-P5 |
| Product Attribute |  |
 |
 |
 |

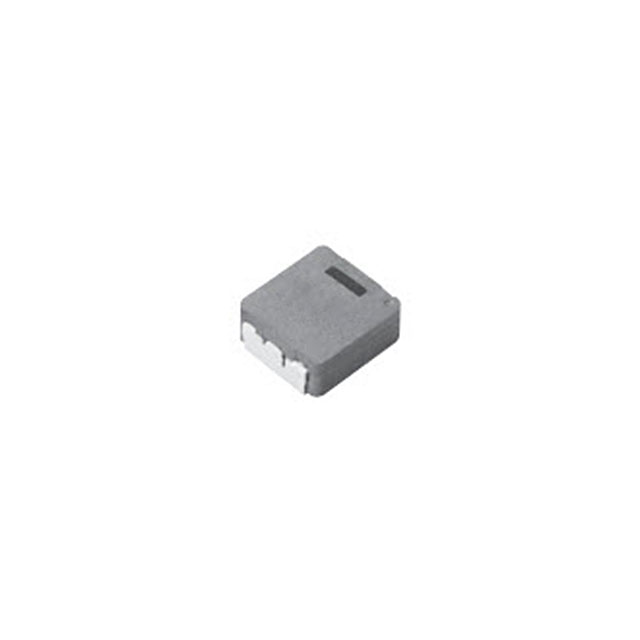

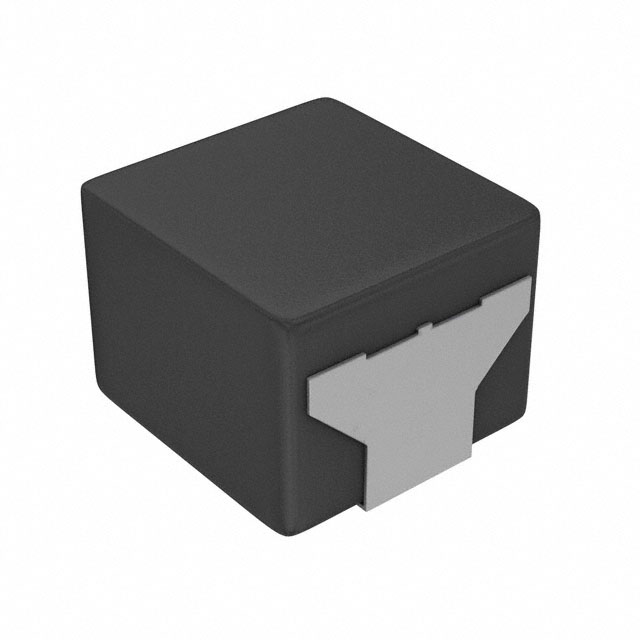

| Part Number | ETQ-P5M100GAK | ETQ-P5M100YFC | ETQ-P5M100YFM | ETQ-P5M101YGC |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR FIXED 10UH SMD | FIXED IND 10UH 8.5A 26.2MOHM SMD | FIXED IND 10UH 5.7A 41.3MOHM SMD | FIXED IND 97UH 2.7A 229 MOHM SMD |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
