FCBA1-0402F-4N7J

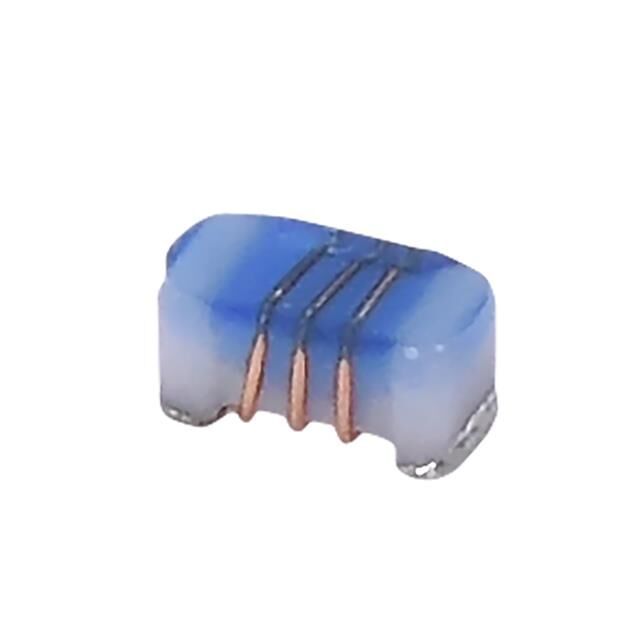

lmages are for reference only.FCBA1-0402F-4N7J
FIXED IND 4.7NH 640MA 0.2 MOHM
Datasheet0402 (1005 Metric)
79,413 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 nH Unshielded Wirewound Inductor 640 mA 200mOhm Max 0402 (1005 Metric)
FCBA1-0402F-4N7J
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0402 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 640 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 18 @ 250MHz |
| Frequency - Self Resonant | 4.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.028" W (1.19mm x 0.70mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | FCBA1-0402F-43NJ | FCBA1-0402F-43NJ | FCBA1-0402F-4N3J | FCBA1-0402F-10NJ |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 43NH 100MA 0.81 MOHM | FIXED IND 43NH 100MA 0.81 MOHM | FIXED IND 4.3NH 700MA 0.091 MOHM | FIXED IND 10NH 480MA 0.2 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
