FCBA1-0603F-36NJ

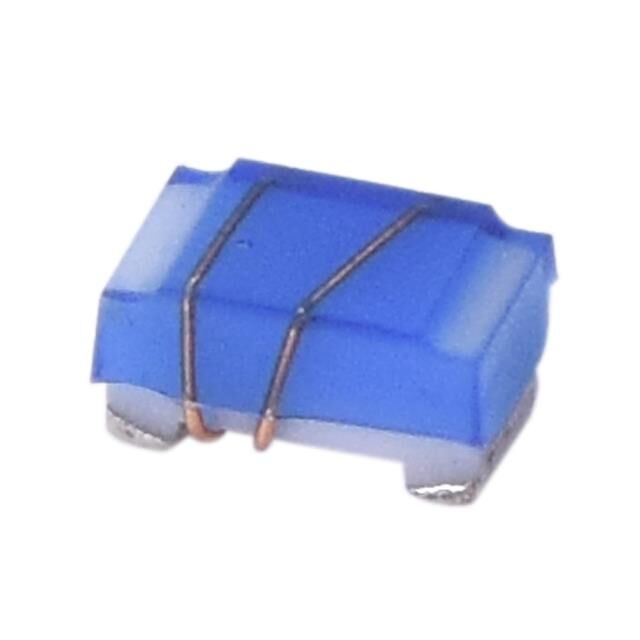

lmages are for reference only.FCBA1-0603F-36NJ
FIXED IND 36NH 600MA 0.25 MOHM
Datasheet0603 (1608 Metric)
49,439 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
36 nH Unshielded Wirewound Inductor 600 mA 250mOhm Max 0603 (1608 Metric)
FCBA1-0603F-36NJ
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0603 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 36 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 250mOhm Max |
| Q @ Freq | 36 @ 250MHz |
| Frequency - Self Resonant | 2.08GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | FCBA1-0603F-30NJ | FCBA1-0603F-33NJ | FCBA1-0603F-39NJ | FCBA1-0603F-3N3K |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 30NH 600MA 0.22 MOHM | FIXED IND 33NH 600MA 0.22 MOHM | FIXED IND 39NH 600MA 0.25 MOHM | FIXED IND 3.3NH 700MA 0.075 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
