FCBA1-0805F-56NJ
lmages are for reference only.FCBA1-0805F-56NJ
FIXED IND 56NH 500MA 0.34 MOHM
Datasheet0805 (2012 Metric)
27,388 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56 nH Unshielded Wirewound Inductor 500 mA 340mOhm Max 0805 (2012 Metric)
FCBA1-0805F-56NJ
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | FCBA1-0805 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 56 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 340mOhm Max |
| Q @ Freq | 55 @ 500MHz |
| Frequency - Self Resonant | 1.55GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 200 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.091" L x 0.068" W (2.30mm x 1.73mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|

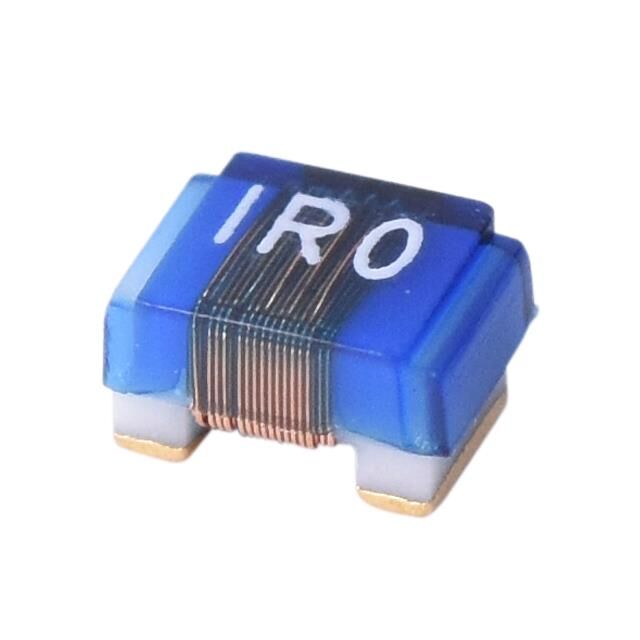

| Part Number | FCBA1-0805F-51NJ | FCBA1-0805F-51NJ | FCBA1-0805F-5N1J | FCBA1-0805F-5N1J |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 51NH 500MA 0.34 MOHM | FIXED IND 51NH 500MA 0.34 MOHM | FIXED IND 5.1NH 600MA 0.05 MOHM | FIXED IND 5.1NH 600MA 0.05 MOHM |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
