FGA30N60LSDTU
Manufacturer
onsemiDescription
IGBT TRENCH/FS 600V 60A TO3P
Datasheet
DatasheetPackage
TO-3P-3, SC-65-3
In Stock
12,266 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

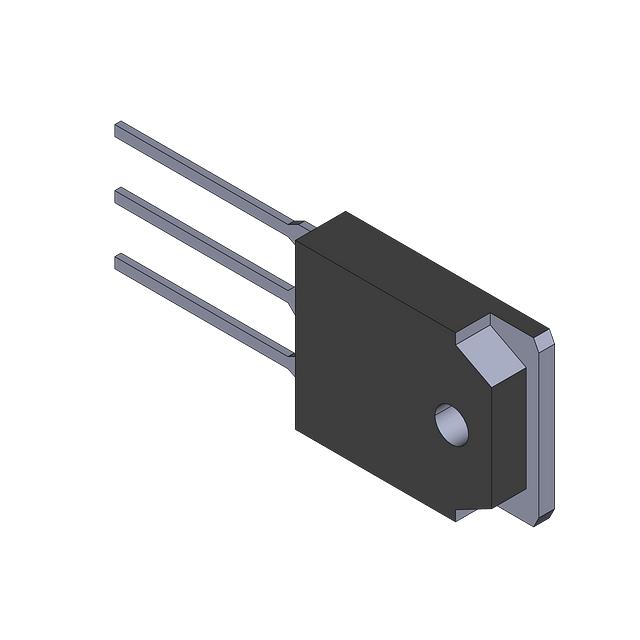

FGA30N60LSDTU
FGA30N60LSDTU
lmages are for reference only.Payment Methods
Delivery Services
IGBT Trench Field Stop 600 V 60 A 480 W Through Hole TO-3P
Quick Inquiry
FGA30N60LSDTU
Specifications
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 90 A |
| Vce(on) (Max) @ Vge, Ic | 1.4V @ 15V, 30A |
| Power - Max | 480 W |
| Switching Energy | 1.1mJ (on), 21mJ (off) |
| Input Type | Standard |
| Gate Charge | 225 nC |
| Td (on/off) @ 25°C | 18ns/250ns |
| Test Condition | 400V, 30A, 6.8Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3, SC-65-3 |
| Supplier Device Package | TO-3P |
| Reverse Recovery Time (trr) | 35 ns |
| Base Product Number | FGA30N60 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

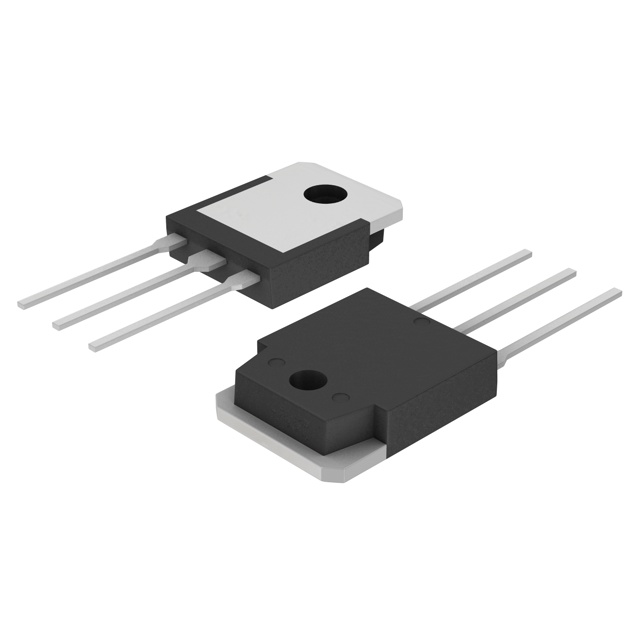

| Part Number | FGA30N60LSDTU | FGA30N65SMD | FGA30N65SMD | FGA120N30DTU |
