HFZ 1005PF-301T12

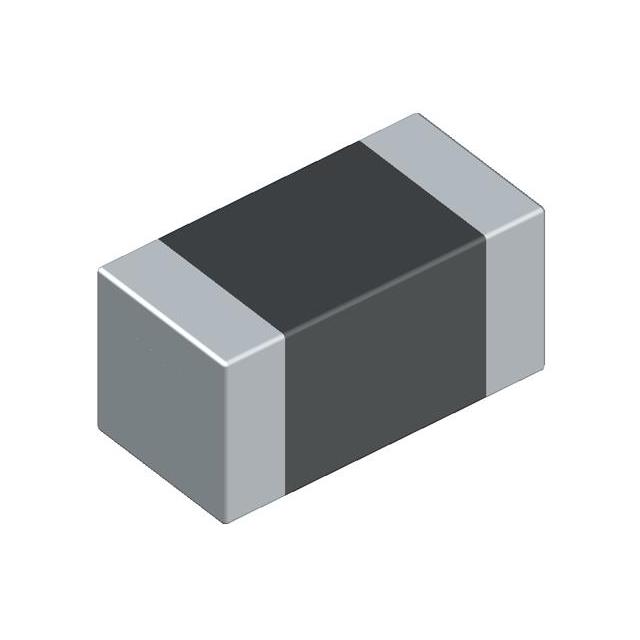

lmages are for reference only.HFZ 1005PF-301T12
300 OHMS @ 100 MHZ 1 POWER LINE
Datasheet0402 (1005 Metric)
28,598 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
300 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0402 (1005 Metric) 1.2A 150mOhm
HFZ 1005PF-301T12
| Category | Filters - Ferrite Beads and Chips - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | HFZ1005PF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 300 Ohms @ 100 MHz |
| Current Rating (Max) | 1.2A |
| DC Resistance (DCR) (Max) | 150mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0402 (1005 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.024" (0.60mm) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Features | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | HFZ 1005PF-100T40 | HFZ 1005PF-121T20 | HFZ 1005PF-221T15 | HFZ 1005PF-300T30 |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10 OHMS @ 100 MHZ 1 POWER LINE F | 120 OHMS @ 100 MHZ 1 POWER LINE | 220 OHMS @ 100 MHZ 1 POWER LINE | 30 OHMS @ 100 MHZ 1 POWER LINE F |
| Series | HFZ1005PF | HFZ1005PF | HFZ1005PF | HFZ1005PF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
