HFZ 1608PF-301T22

HFZ 1608PF-301T22

HFZ 1608PF-301T22

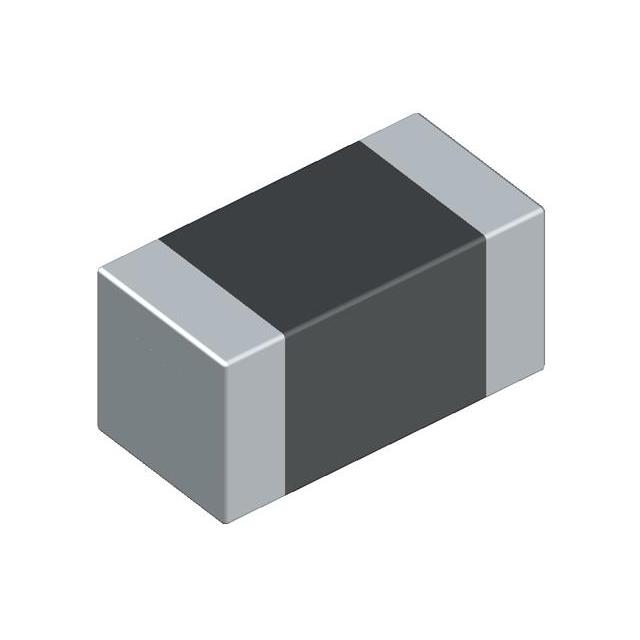

lmages are for reference only.
  • Part Number

    HFZ 1608PF-301T22

  • Manufacturer

    TAI-TECH Advanced Electronics Co., Ltd.
  • Description

    300 OHMS @ 100 MHZ 1 POWER, SIGN

  • Datasheet

    DatasheetDatasheet
  • Package

    0603 (1608 Metric)

  • In Stock

    52,790 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

300 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 2.2A 70mOhm

Quick Inquiry

HFZ 1608PF-301T22

Get the Price Now!

Specifications

Category Filters - Ferrite Beads and Chips -
Manufacturer TAI-TECH Advanced Electronics Co., Ltd.
Series HFZ1608PF
Packaging Tape & Reel (TR)-->Cut Tape (CT)
RoHS Status ROHS3 Compliant
Filter Type Power Line
Number of Lines 1
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 70mOhm
Ratings -
Operating Temperature -55°C ~ 125°C
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Height (Max) 0.037" (0.95mm)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Features -
Base Product Number -

Parts with Similar Specifications

Product Attribute HFZ 1608PF-101T30 HFZ 1608PF-102T15 HFZ 1608PF-121T30 HFZ 1608PF-151T25
Part Number HFZ 1608PF-101T30 HFZ 1608PF-102T15 HFZ 1608PF-121T30 HFZ 1608PF-151T25
Manufacturer TAI-TECH Advanced Electronics Co., Ltd. TAI-TECH Advanced Electronics Co., Ltd. TAI-TECH Advanced Electronics Co., Ltd. TAI-TECH Advanced Electronics Co., Ltd.
RoHS Status ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant ROHS3 Compliant
Description 100 OHMS @ 100 MHZ 1 POWER, SIGN 1 KOHMS @ 100 MHZ 1 POWER, SIGNA 120 OHMS @ 100 MHZ 1 POWER, SIGN 150 OHMS @ 100 MHZ 1 POWER, SIGN
Series HFZ1608PF HFZ1608PF HFZ1608PF HFZ1608PF
Packaging Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR)-->Cut Tape (CT)
