IB048E096T40N1-00
lmages are for reference only.IB048E096T40N1-00
DC DC CONVERTER 9.5-13.75V 300W
DatasheetEighth Brick
26,422 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Intermediate Bus Converter DC DC Converter 1 Output 9.5 ~ 13.75V 40A 38V - 55V Input
IB048E096T40N1-00
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Vicor Corporation |
| Series | VI Brick® IBC (500W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 38V |
| Voltage - Input (Max) | 55V |
| Voltage - Output 1 | 9.5 ~ 13.75V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, UVLO |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 96.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Eighth Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.38" H (58.4mm x 22.9mm x 9.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

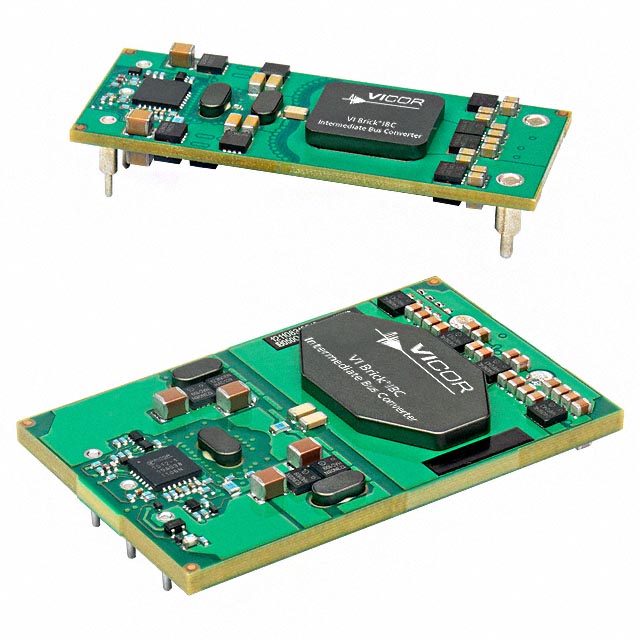

| Part Number | IB048E096T48N1-00 | IB048E120T32N1-00 | IB048E120T40N1-00 | IB048Q120T53N1-00 |
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 9.5-13.75V 450W | DC DC CONVERTER 9.5-13.75V 300W | DC DC CONVERTER 9.5-13.75V 480W | DC DC CONVERTER 9.5-13.75V 600W |
| Series | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Packaging | Tray | Tray | Tray | Tray |
