IB0505XT-W75R3
lmages are for reference only.IB0505XT-W75R3
ISOLATED MODULE DC DC CONVERTER
Datasheet8-SMD Module, 5 Leads
20,206 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 150mA 4.75V - 5.25V Input
IB0505XT-W75R3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 150mA |
| Power (Watts) | 750 mW |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 72% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, EN, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
|

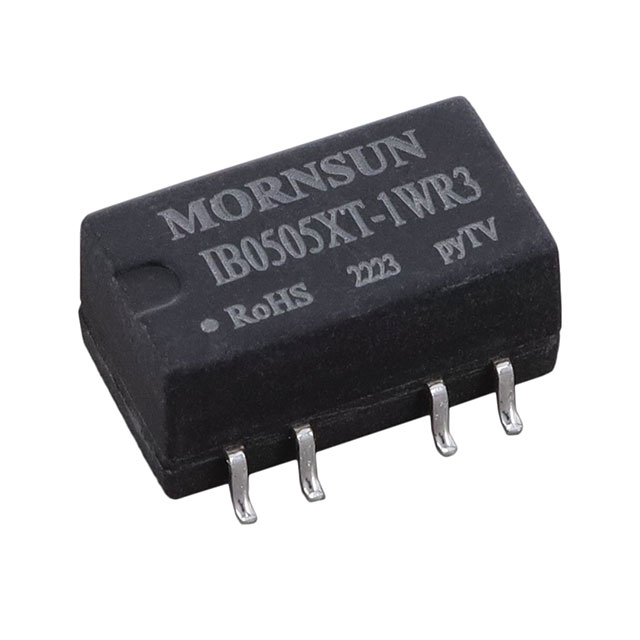

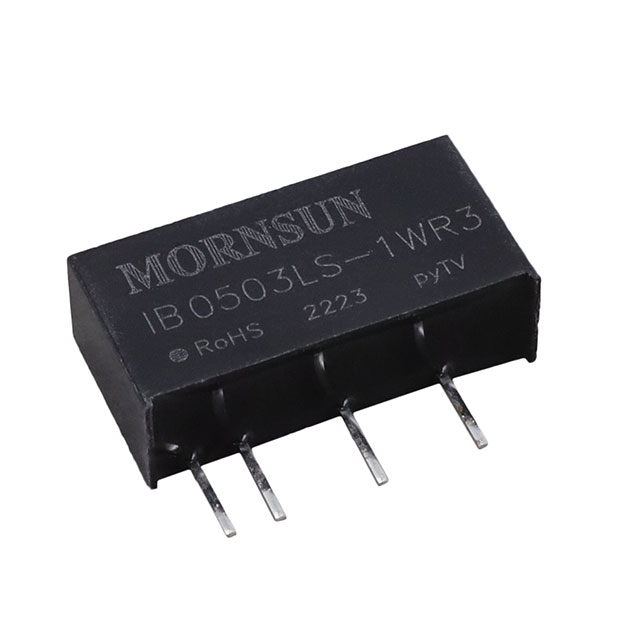

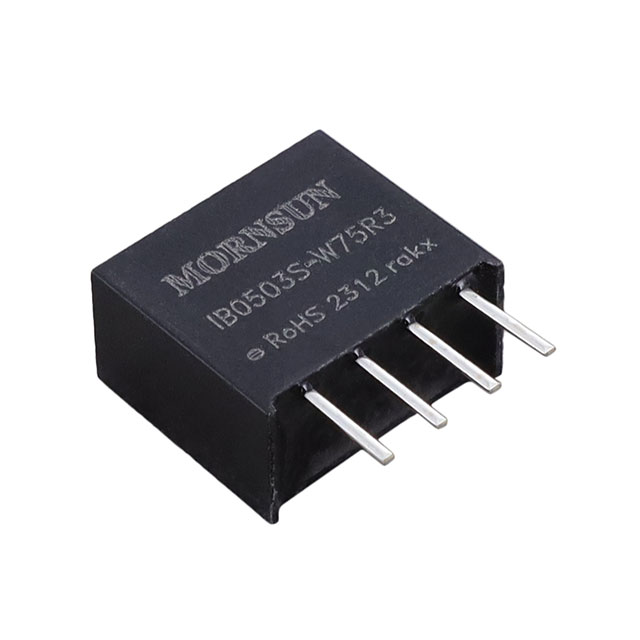

| Part Number | IB0505XT-1WR3 | IB0503LS-1WR3 | IB0503S-W75R3 | IB0503S-W75R3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC-DC ISOLATED 1 W 4.75~5.25V | DC DC CONVERTER 3.3V 825MW | DC DC CONVERTER 3.3V 660MW | DC DC CONVERTER 3.3V 660MW |
| Series | ||||
| Packaging | IB05_XT-1WR3 | IB05_LS-1WR3 | IB05_S-W75R3 | IB05_S-W75R3 |
