IRF6636TR1PBF

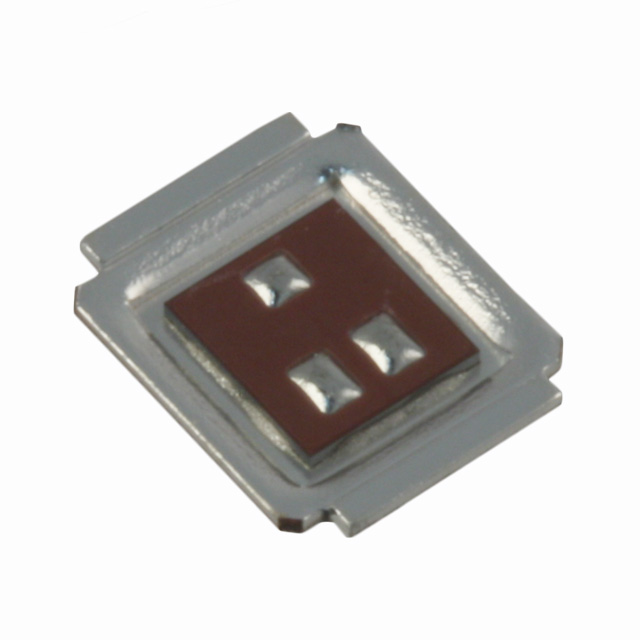

lmages are for reference only.IRF6636TR1PBF
MOSFET N-CH 20V 18A DIRECTFET
DatasheetDirectFET™ Isometric ST
35,797 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 20 V 18A (Ta), 81A (Tc) 2.2W (Ta), 42W (Tc) Surface Mount DIRECTFET™ ST
IRF6636TR1PBF
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Ta), 81A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.5mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id | 2.45V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2420 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.2W (Ta), 42W (Tc) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DIRECTFET™ ST |
| Package / Case | DirectFET™ Isometric ST |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 27 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | IRF6636 | IRF6636TR1 | IRF6636TRPBF | IRF100B201 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 20V 18A DIRECTFET | MOSFET N-CH 20V 18A DIRECTFET | MOSFET N-CH 20V 18A DIRECTFET | MOSFET N-CH 100V 192A TO220AB |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET®, StrongIRFET™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
