Product CatalogPart Number
IRL640APWD
Manufacturer
onsemiDescription
POWER MOSFET, N-CHANNEL, LOGIC L
Datasheet
DatasheetPackage
TO-220-3
In Stock
47,382 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
IRL640APWD
IRL640APWD
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 200 V 18A (Tc) 110W (Tc) Through Hole TO-220-3
Quick Inquiry
IRL640APWD
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | onsemi |
| Series | PowerTrench® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 9A, 5V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1705 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 110W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 56 nC @ 5 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

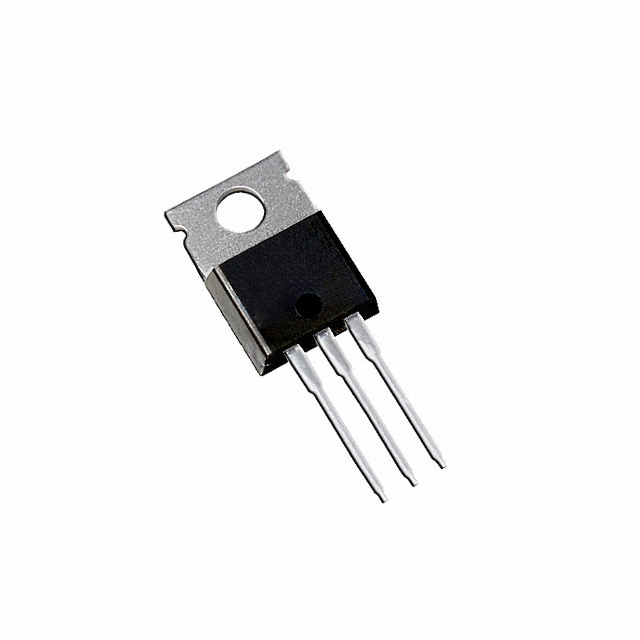

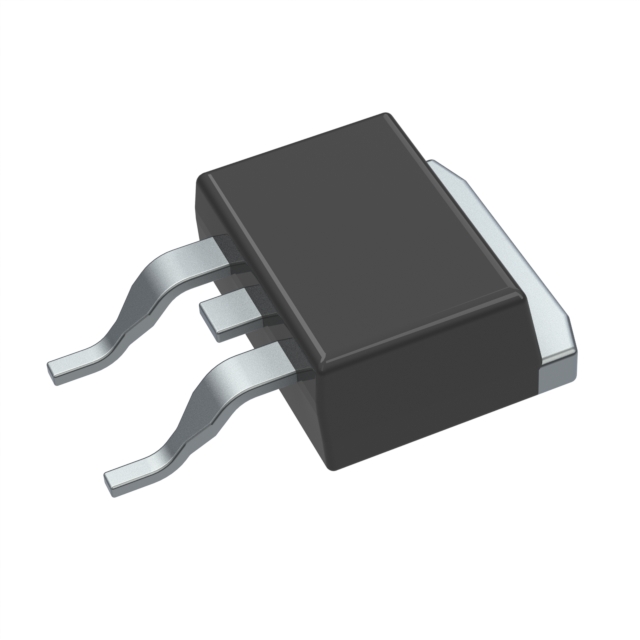

| Part Number | IRL640A | IRL60B216 | IRL60HS118 | IRL60S216 |
| Manufacturer | onsemi | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 200V 18A TO220-3 | MOSFET N-CH 60V 195A TO220AB | MOSFET N-CH 60V 18.5A 6PQFN | MOSFET N-CH 60V 195A D2PAK |
| Series | - | HEXFET®, StrongIRFET™ | - | HEXFET®, StrongIRFET™ |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
