IXGT40N120B2D1
lmages are for reference only.Payment Methods
Delivery Services

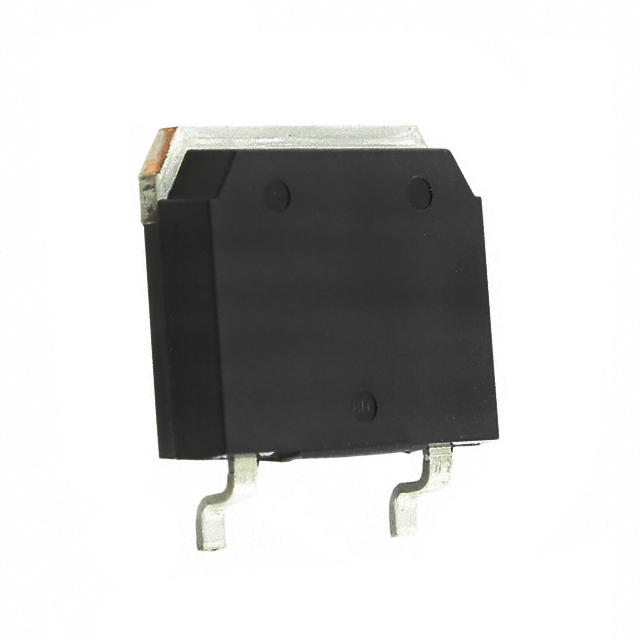

IGBT PT 1200 V 75 A 380 W Surface Mount TO-268AA
IXGT40N120B2D1
| Category | Discrete Semiconductor Products - Transistors - IGBTs |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 200 A |
| Vce(on) (Max) @ Vge, Ic | 3.5V @ 15V, 40A |
| Power - Max | 380 W |
| Switching Energy | 4.5mJ (on), 3mJ (off) |
| Input Type | Standard |
| Gate Charge | 138 nC |
| Td (on/off) @ 25°C | 21ns/290ns |
| Test Condition | 960V, 40A, 2Ohm, 15V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Supplier Device Package | TO-268AA |
| Reverse Recovery Time (trr) | 100 ns |
| Base Product Number | IXGT40 |
| Product Attribute |  |
 |
 |
 |
| Part Number | IXGT10N170 | IXGT10N170A | IXGT15N120B | IXGT15N120BD1 |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IGBT NPT 1700V 20A TO268AA | IGBT NPT 1700V 10A TO268AA | IGBT PT 1200V 30A TO268AA | IGBT 1200V 30A TO268AA |
| Series | - | - | HiPerFAST™ | - |
| Packaging | Tube | Tube | Tube | Tube |
