Product CatalogPart Number
L955QEQGC-TR
Manufacturer
American Opto Plus LEDDescription
LED GREEN/RED CLEAR 4SMD
Datasheet
DatasheetPackage
4-SMD, J-Lead
In Stock
24,854 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
L955QEQGC-TR
L955QEQGC-TR
lmages are for reference only.Payment Methods
Delivery Services
Green, Red 570nm Green, 640nm Red LED Indication - Discrete 2V Green, 2V Red 4-SMD, J-Lead
Quick Inquiry
L955QEQGC-TR
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 80mcd Green, 80mcd Red |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 570nm Green, 640nm Red |
| Wavelength - Peak | 572nm Green, 650nm Red |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Height (Max) | 2.05mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

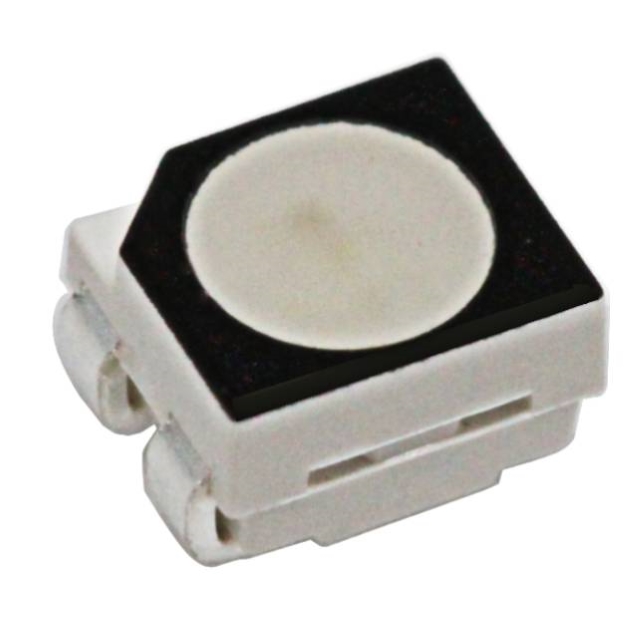

| Part Number | L955QEQPGQBC | L950B-LPGC-TR | L950B-QEC-TR | L955B-MWMC-Z |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB 4PLCC SMD | LED GREEN CLEAR 6SMD | LED RED CLEAR 6SMD | LED WARM WHITE 2PLCC SMD |
| Series | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
