Product CatalogPart Number
L955QEQPGQBC
Manufacturer
American Opto Plus LEDDescription
LED RGB 4PLCC SMD
Datasheet
DatasheetPackage
4-PLCC
In Stock
60,345 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
L955QEQPGQBC
L955QEQPGQBC

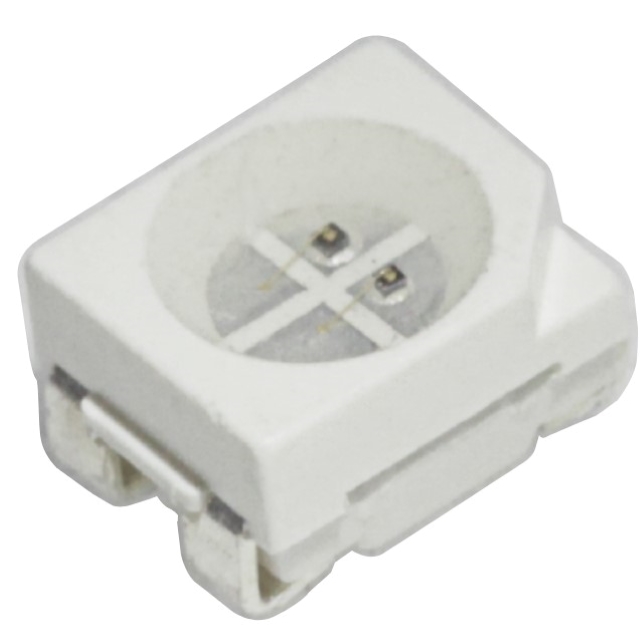

lmages are for reference only.Payment Methods
Delivery Services
Red, Green, Blue (RGB) 625nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.2V Blue 4-PLCC
Quick Inquiry
L955QEQPGQBC
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | American Opto Plus LED |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 850mcd Red, 1500mcd Green, 330mcd Blue |
| Lens Style | Round with Flat Top |
| Lens Size | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3.2V Green, 3.2V Blue |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | 635nm Red, 525nm Green, 460nm Blue |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.20mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | L955QEQGC-TR | L950B-LPGC-TR | L950B-QEC-TR | L955B-MWMC-Z |
| Manufacturer | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 4SMD | LED GREEN CLEAR 6SMD | LED RED CLEAR 6SMD | LED WARM WHITE 2PLCC SMD |
| Series | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED | American Opto Plus LED |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
