LCFE201202A900TG
lmages are for reference only.LCFE201202A900TG
CMC 100MA 2LN 90 OHM SMD ESD
Datasheet0805 (2012 Metric), 6 Lead
64,271 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 100mA DCR 4Ohm
LCFE201202A900TG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Littelfuse Inc. |
| Series | LCFE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 4Ohm |
| Voltage Rating - DC | 5V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | TVS Diode ESD Protection |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.033" (0.85mm) |
| Package / Case | 0805 (2012 Metric), 6 Lead |
| Base Product Number | - |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

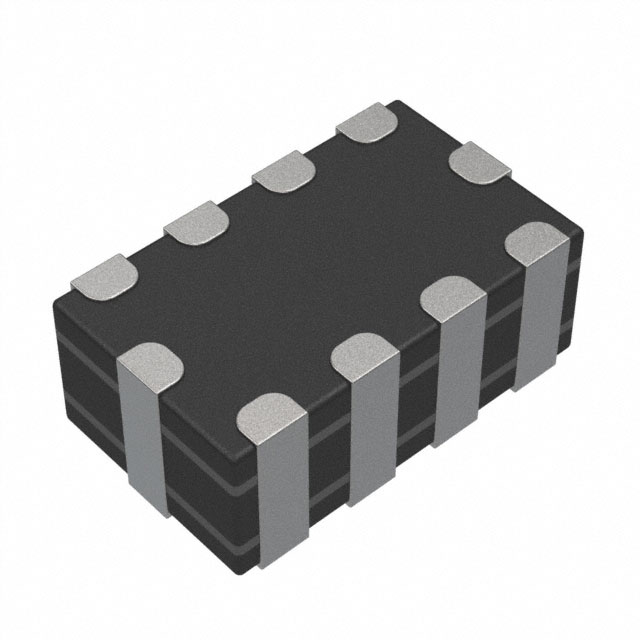

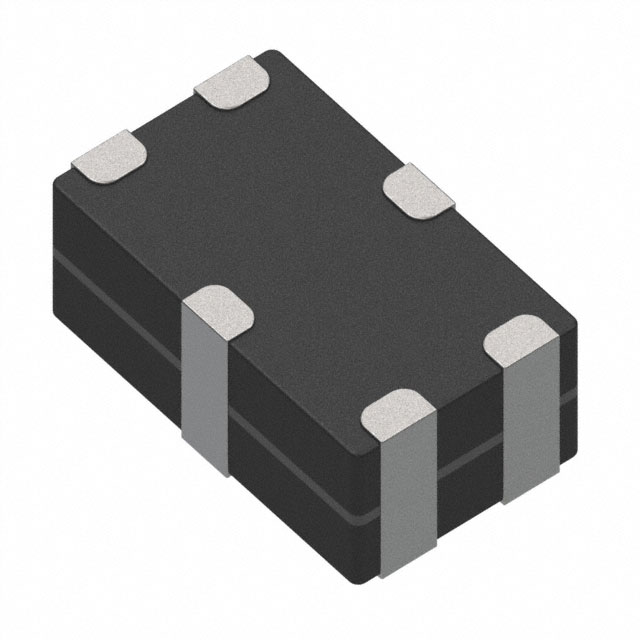

| Part Number | LCFE201202A121TG | LCFE201204A101TG | LCFEA121002A900TG | LXES21DAA4-136 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 100MA 2LN 120 OHM SMD ESD | CMC 100MA 4LN 100 OHM SMD ESD | CMC 100MA 2LN 90OHM SMD | CMC 60MA 4LN SMD |
| Series | LCFE | LCFE | LCFEA | LXESxxD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
