LCFE201204A101TG
lmages are for reference only.LCFE201204A101TG
CMC 100MA 4LN 100 OHM SMD ESD
Datasheet0805 (2012 Metric), 10 Lead
61,824 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 Line Common Mode Choke Surface Mount 100 Ohms @ 100 MHz 100mA DCR 4Ohm
LCFE201204A101TG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Littelfuse Inc. |
| Series | LCFE |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 4 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | 4Ohm |
| Voltage Rating - DC | 5V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | TVS Diode ESD Protection |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.033" (0.85mm) |
| Package / Case | 0805 (2012 Metric), 10 Lead |
| Base Product Number | - |
| Impedance @ Frequency | 100 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

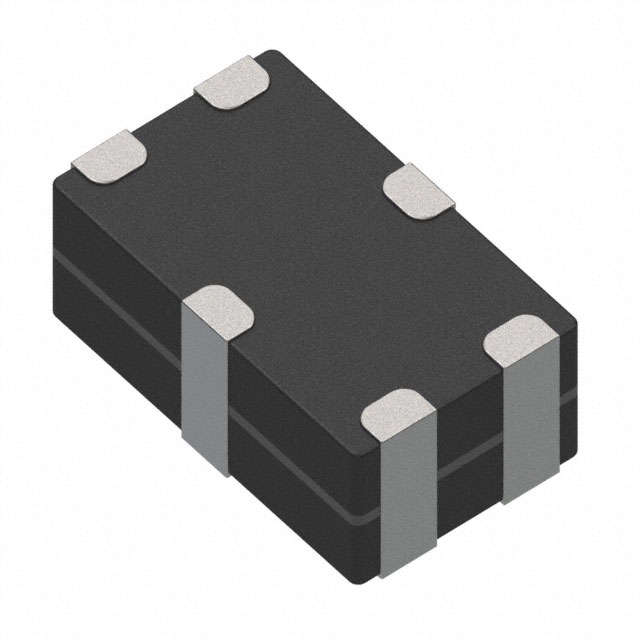

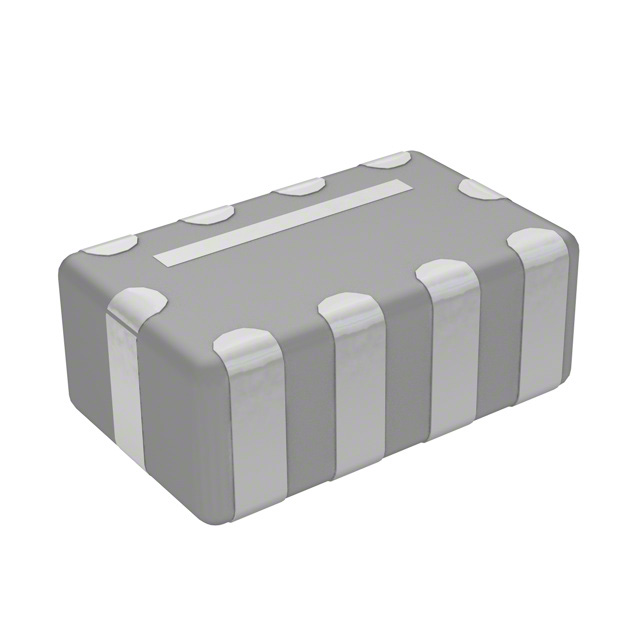

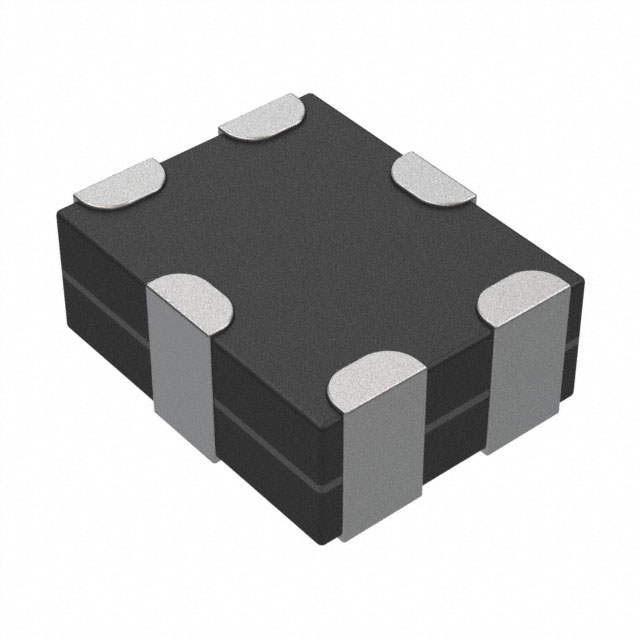

| Part Number | LCFE201202A121TG | LCFE201202A900TG | LCFEA121002A900TG | LXES21DAA4-136 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Murata Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 100MA 2LN 120 OHM SMD ESD | CMC 100MA 2LN 90 OHM SMD ESD | CMC 100MA 2LN 90OHM SMD | CMC 60MA 4LN SMD |
| Series | LCFE | LCFE | LCFEA | LXESxxD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
