LDD-1500LS
lmages are for reference only.LDD-1500LS
LED DRIVER CC BUCK 2-30V 1.5A
Datasheet24-SMD Module, 18 Leads
62,292 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5A 2 ~ 30V Constant Current LED Driver Buck Topology 1 Output
LDD-1500LS
| Category | Power Supplies - Board Mount - LED Drivers - |
| Manufacturer | MEAN WELL USA Inc. |
| Series | LDD-L |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Constant Current |
| Topology | Buck |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 36V |
| Voltage - Output | 2 ~ 30V |
| Current - Output (Max) | 1.5A |
| Power (Watts) | - |
| Dimming | Analog, PWM |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 71°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 18 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.45" H (31.8mm x 20.3mm x 11.4mm) |
| Approval Agency | CE |
| Weight | - |
| Base Product Number | LDD-1500 |
| Standard Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

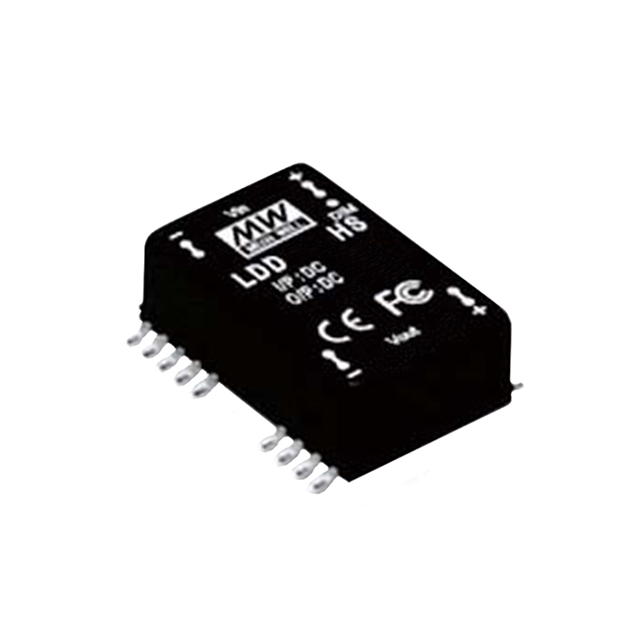

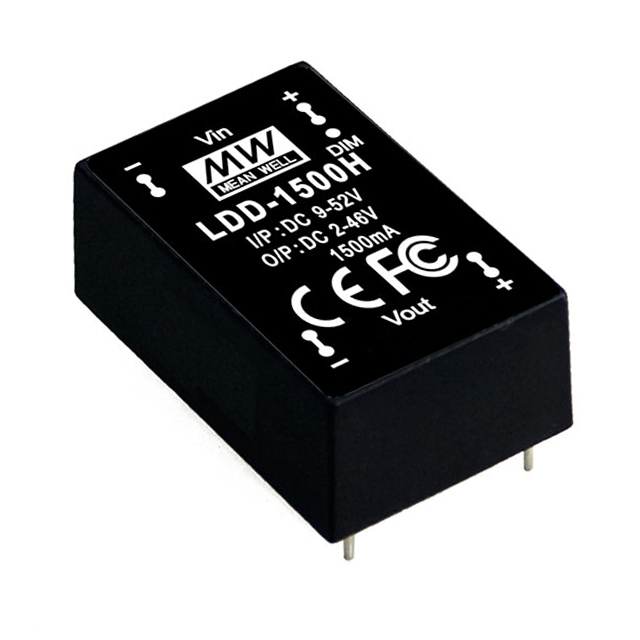

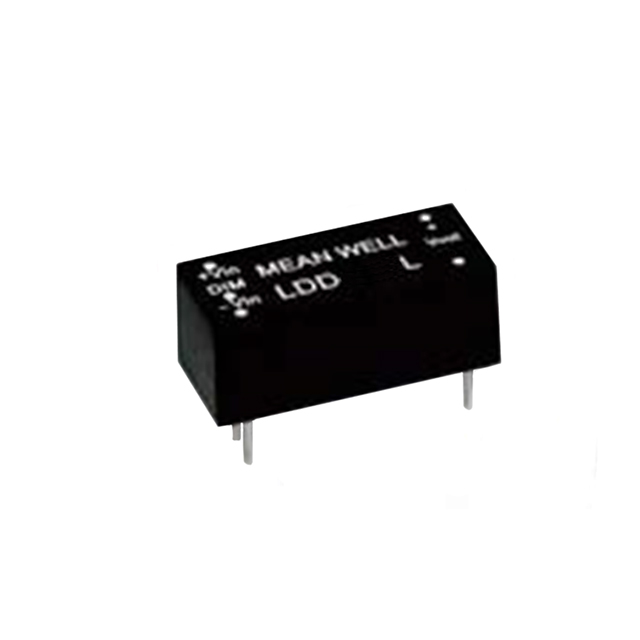

| Part Number | LDD-1500H | LDD-1500L | LDD-1000H | LDD-1000HS |
| Manufacturer | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED DRIVER CC BUCK 2-46V 1.5A | LED DRIVER CC BUCK 2-30V 1.5A | LED DRIVER CC BUCK 2-52V 1A | LED DRIVER CC BUCK 2-52V 1A |
| Series | LDD-H | LDD-L | LDD-H | LDD-H |
| Packaging | Tube | Tube | Tube | Box |
