LDD-1400H-DA
lmages are for reference only.LDD-1400H-DA
LED DRIVER CC BUCK 3-36V 1.4A
Datasheet16-DIP Module, 8 Leads
60,044 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.4A 3 ~ 36V Constant Current LED Driver Buck Topology 1 Output
LDD-1400H-DA
| Category | Power Supplies - Board Mount - LED Drivers - |
| Manufacturer | MEAN WELL USA Inc. |
| Series | LDD-H-DA |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Constant Current |
| Topology | Buck |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 6V |
| Voltage - Input (Max) | 40V |
| Voltage - Output | 3 ~ 36V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | - |
| Dimming | PWM |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95% |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 8 Leads |
| Size / Dimension | 1.60" L x 0.93" W x 0.40" H (40.6mm x 23.5mm x 10.1mm) |
| Approval Agency | CE |
| Weight | - |
| Base Product Number | LDD-1400 |
| Standard Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

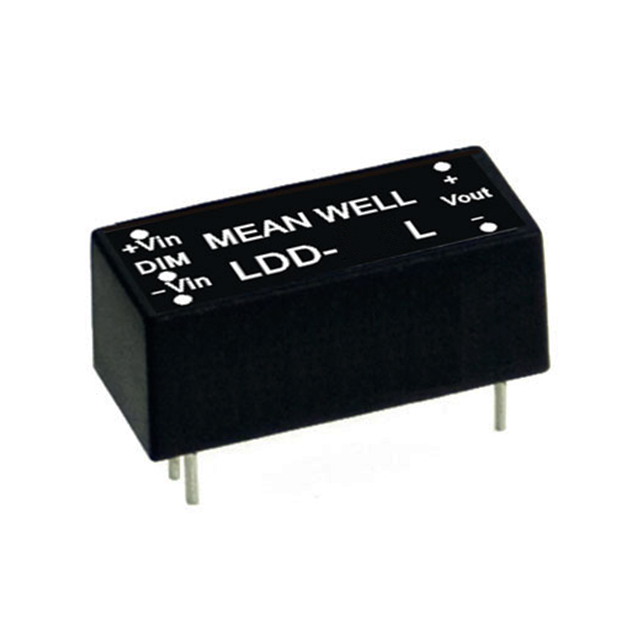

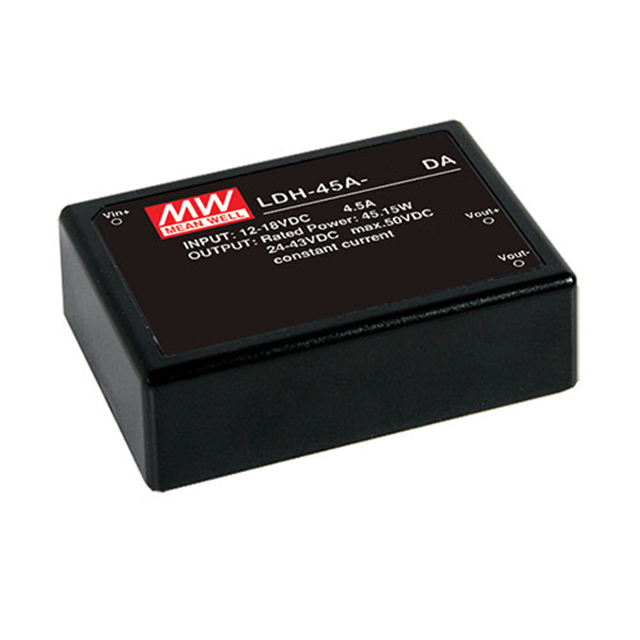

| Part Number | LDD-1400H-WDA | LDU5660S300 | LDH-45A-1050DA | LDD-700L |
| Manufacturer | MEAN WELL USA Inc. | XP Power | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED DRIVER CC BUCK 3-36V 1.4A | LED DRIVER CC BUCK 2-56V 300MA | LED DRIVER CC BOOST 24-43V 1.05A | LED DRIVER CC BUCK 2-32V 700MA |
| Series | LDD-H-DA | LDU56 | LDH-45 | LDD-L |
| Packaging | Tube | Tube | Tube | Tube |
