Product CatalogPart Number
LDFW008123YV-V0E
Manufacturer
Chemi-ConDescription
CMC 11.5MH 8A 2LN TH
Datasheet
DatasheetPackage
Vertical, No Base, 4 PC Pin
In Stock
24,602 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
LDFW008123YV-V0E
LDFW008123YV-V0E
lmages are for reference only.Payment Methods
Delivery Services
11.5 mH @ 100 kHz 2 Line Common Mode Choke Through Hole 8A DCR 26mOhm (Typ)
Quick Inquiry
LDFW008123YV-V0E
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Chemi-Con |
| Series | FW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 11.5 mH @ 100 kHz |
| Current Rating (Max) | 8A |
| DC Resistance (DCR) (Max) | 26mOhm (Typ) |
| Voltage Rating - DC | 250V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 130°C |
| Ratings | AEC-Q200 |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.339" Dia (34.00mm) |
| Height (Max) | 1.201" (30.50mm) |
| Package / Case | Vertical, No Base, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

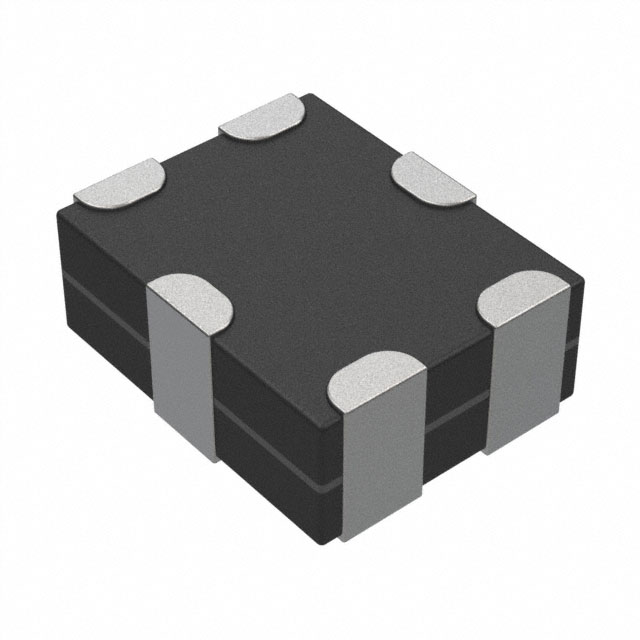

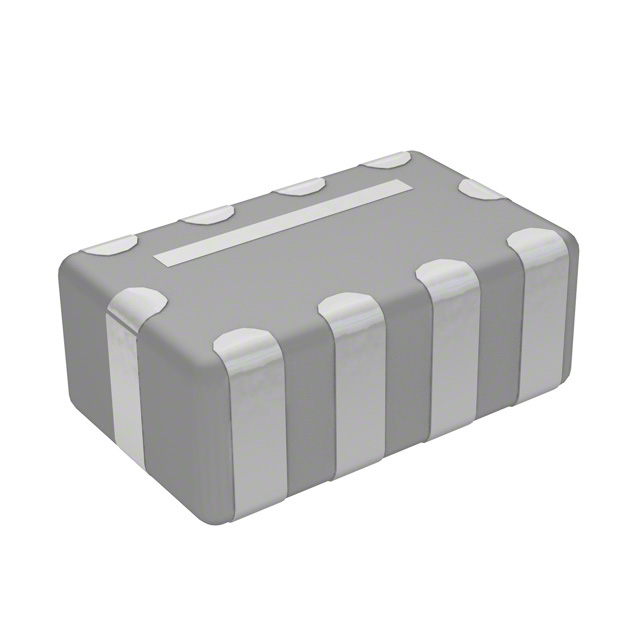

| Part Number | LDFW007652Y6-V0E | LCFEA121002A900TG | LXES21DAA4-136 | LDFW010642Y74H0E |
| Manufacturer | Chemi-Con | Littelfuse Inc. | Murata Electronics | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 6.5MH 7A 2LN TH | CMC 100MA 2LN 90OHM SMD | CMC 60MA 4LN SMD | NANOCRYSTALLINE COMMON MODE COIL |
| Series | FW | LCFEA | LXESxxD | FW |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
