LM2686MTCX/NOPB

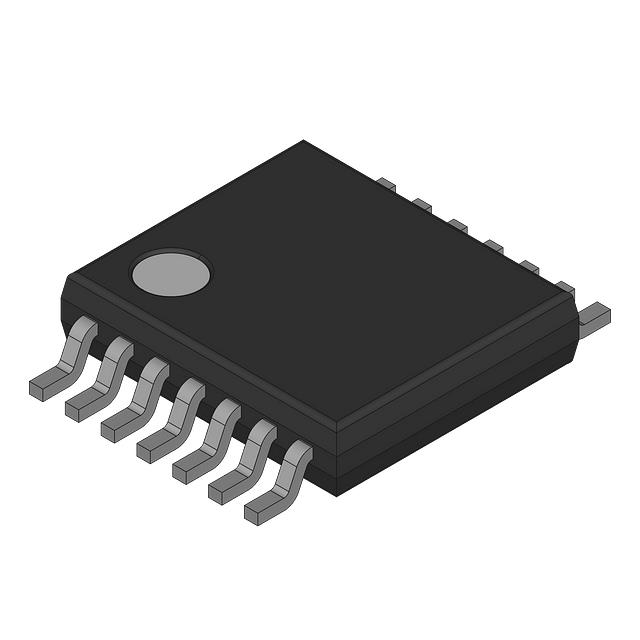

lmages are for reference only.LM2686MTCX/NOPB
SWITCHED CAPACITOR REGULATOR
Datasheet14-TSSOP (0.173", 4.40mm Width)
67,534 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PMIC - Voltage Regulators - Linear Switching 2 Output Charge Pump (1), Linear (LDO) (1) 130kHz 14-TSSOP
LM2686MTCX/NOPB
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear Switching |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Topology | Charge Pump (1), Linear (LDO) (1) |
| Number of Outputs | 2 |
| Frequency - Switching | 130kHz |
| Voltage/Current - Output 1 | ±5V, 5.7V ~ 10.8V, 50mA |
| Voltage/Current - Output 2 | 5V, 50mA |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Voltage - Supply | 2.85V ~ 6.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | LM2686 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | LM2686MTC/NOPB | LM2686MTC/NOPB | LM2686MTCX/NOPB | LM2685MTC/NOPB |
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG DL CHRPMP/LINEAR 14TSSOP | SWITCHED CAPACITOR REGULATOR | IC REG DL CHRPMP/LINEAR 14TSSOP | IC REG DL CHRPMP/LINEAR 14TSSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
