LRW0805WK5N6GG001E

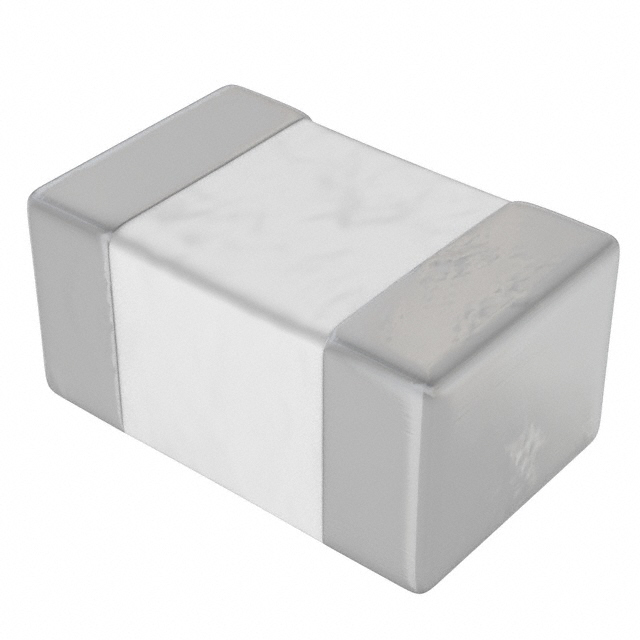

lmages are for reference only.LRW0805WK5N6GG001E
FIXED IND 5.6NH 600MA 80MOHM SMD
Datasheet0805 (2012 Metric)
31,495 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6 nH Unshielded Drum Core, Wirewound Inductor 600 mA 80mOhm Max 0805 (2012 Metric)
LRW0805WK5N6GG001E
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Johanson Technology Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 5.6 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 60 @ 1GHz |
| Frequency - Self Resonant | 5.8GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |
| Part Number | LRW0805WC2N7GG001E | LRW0805WC3N9GG001E | LRW0805WC5N6GG001E | LRW0805WG10NGG001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.7NH 800MA 80MOHM SMD | FIXED IND 3.9NH 600MA 60MOHM SMD | FIXED IND 5.6NH 600MA 80MOHM SMD | FIXED IND 10NH 600MA 80 MOHM SMD |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
