LSM2-T/10-D12-C
lmages are for reference only.LSM2-T/10-D12-C
DC DC CONVERTER 0.75-5V 50W
Datasheet8-SMD Module
44,546 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5V 10A 8.3V - 13.2V Input
LSM2-T/10-D12-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | LSM2 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8.3V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 0.75 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95.8% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module |
| Size / Dimension | 1.30" L x 0.53" W x 0.34" H (33.0mm x 13.5mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | LSM2-T |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |

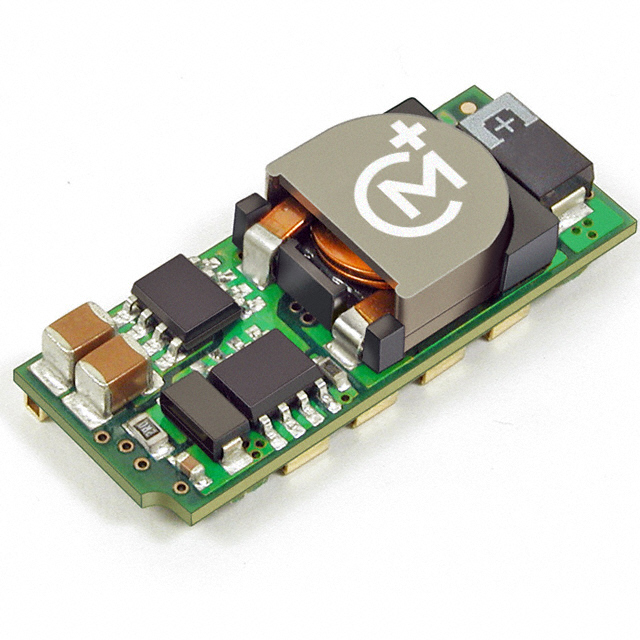

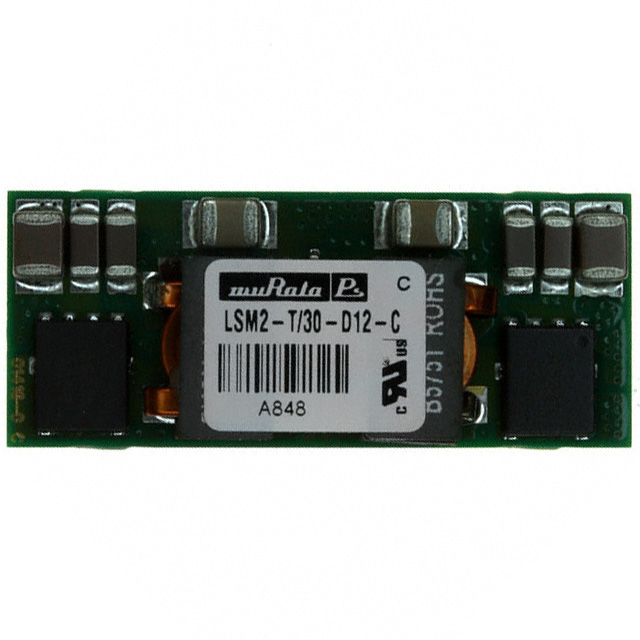

| Part Number | LSM2-T/30-D12-C | LSM2-T/30-D12R-C | LSM2-T/30-D12R-C-CIS | LSM2-T/6-D12-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ||||
| Description | DC DC CONVERTER 0.8-5V 125W | DC DC CONVERTER 0.8-5V 125W | DC DC CONVERTER 0.8-5V | DC DC CONVERTER 0.75-5V 30W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
