LW Y3SG-AEAF-DLJM-Z
lmages are for reference only.LW Y3SG-AEAF-DLJM-Z
LED COOL WHITE DIFFUSED 2SMD R/A
Datasheet2-SMD, No Lead
97,675 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
White, Cool LED Indication - Discrete 2-SMD, No Lead
LW Y3SG-AEAF-DLJM-Z
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | ams-OSRAM USA INC. |
| Series | Micro SIDELED® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | White, Cool |
| Configuration | Standard |
| Lens Color | Yellow |
| Lens Transparency | Diffused |
| Millicandela Rating | 1600mcd |
| Lens Style | - |
| Lens Size | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 3.80mm L x 1.20mm W |
| Height (Max) | 0.70mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

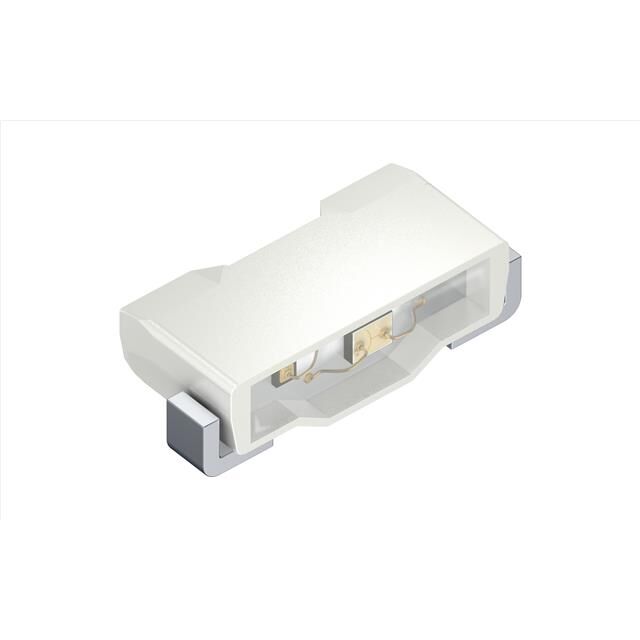

| Part Number | LW Y1SG-AEBE-EKFM-1-Z | LW Y1SG-AEBE-GKJM-1-Z | LW Y1SG-AFBF-EKFM-1-Z | LW Y1SG-AFBF-GKJM-1-Z |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED COOL WHITE DIFFUSED SMD R/A | LED COOL WHITE DIFFUSED SMD R/A | LED COOL WHITE DIFFUSED SMD R/A | LED COOL WHITE DIFFUSED SMD R/A |
| Series | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
