MLF2012A1R0MT

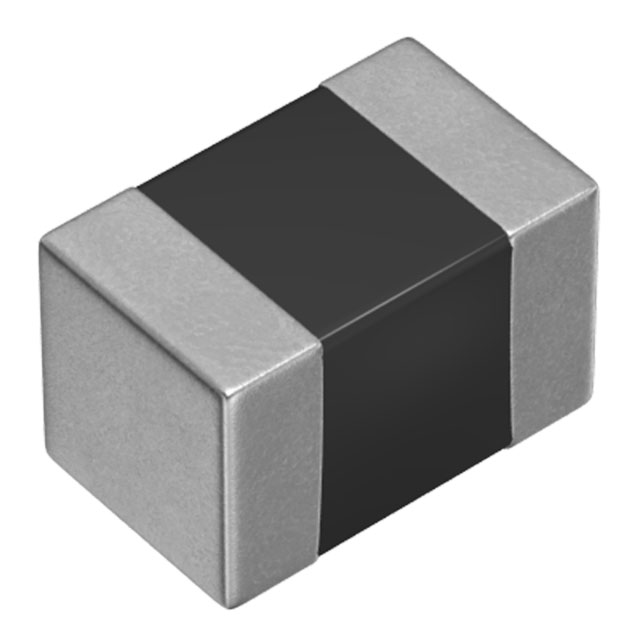

lmages are for reference only.MLF2012A1R0MT
FIXED IND 1UH 80MA 300 MOHM SMD
Datasheet0805 (2012 Metric)
37,311 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Multilayer Inductor 80 mA 300mOhm Max 0805 (2012 Metric)
MLF2012A1R0MT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | MLF |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ferrite |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 80 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 300mOhm Max |
| Q @ Freq | 45 @ 10MHz |
| Frequency - Self Resonant | 120MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 10 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.041" (1.05mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MLF2012A1R0M | MLF2012A1R0MT000 | MLF2012A1R0MTD25 | MLF2012A1R0JT000 |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1UH 80MA 300 MOHM SMD | FIXED IND 1UH 80MA 300 MOHM SMD | FIXED IND 1UH 80MA 300 MOHM SMD | FIXED IND 1UH 80MA 300 MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
