MMBZ15VALFHT116

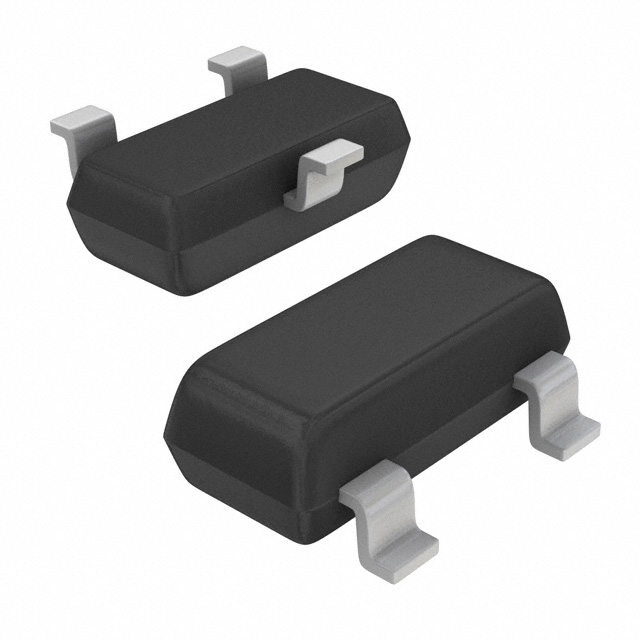

lmages are for reference only.MMBZ15VALFHT116
TVS DIODE 12VWM 21VC SSD3
DatasheetTO-236-3, SC-59, SOT-23-3
81,574 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
21V Clamp 1.9A Ipp Tvs Diode Surface Mount SSD3
MMBZ15VALFHT116
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 14.25V |
| Voltage - Clamping (Max) @ Ipp | 21V |
| Current - Peak Pulse (10/1000µs) | 1.9A |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
| Applications | - |
| Capacitance @ Frequency | 75pF @ 1MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SSD3 |
| Base Product Number | MMBZ15 |
| Unidirectional Channels | 2 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
 |
 |
| Part Number | MMBZ15VAL,215 | MMBZ15VAL-7 | MMBZ15VAL-7-F | MMBZ15VAL-QR |
| Manufacturer | Nexperia USA Inc. | Diodes Incorporated | Diodes Incorporated | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 12VWM 21VC TO236AB | TVS DIODE 12VWM 21VC SOT23 | TVS DIODE 12VWM 21VC SOT23 | MMBZ15VAL-Q/SOT23/TO-236AB |
| Series | Nexperia USA Inc. | Diodes Incorporated | Diodes Incorporated | Nexperia USA Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
