Product CatalogPart Number
MPTS1206L005
Manufacturer
MeritekDescription
PTC RESET FUSE 60V 0.05A 1206
Datasheet
DatasheetPackage
1206 (3216 Metric)
In Stock
93,646 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MPTS1206L005
MPTS1206L005
lmages are for reference only.Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 60V 50 mA Ih Surface Mount 1206 (3216 Metric)
Quick Inquiry
MPTS1206L005
Specifications
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Meritek |
| Series | MPTS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Trip (It) | 150 mA |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.128" L x 0.065" W (3.25mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
| Approval Agency | cUL, TUV, UL |
| Time to Trip | 1.5 s |
| Resistance - Initial (Ri) (Min) | 3.6 Ohms |
| Resistance - Post Trip (R1) (Max) | 50 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | MPTS1206L010R | MPTS1206L016R | MPTS1206L025R | MPTS1206L050 |
| Manufacturer | Meritek | Meritek | Meritek | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 60V 0.1A 1206 | PTC RESET FUSE 48V 0.16A 1206 | PTC RESET FUSE 16V 0.25A 1206 | PTC RESET FUSE 8V 0.5A 1206 |
| Series | MPTS | MPTS | MPTS | MPTS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
Customers Also Interested in
Recommended Products
MPTS1206L010R
Meritek
MPTS1206L016R
Meritek
MPTS1206L025R
Meritek
MPTS1206L050
Meritek
MPTS1206L07516R
Meritek
MPTS1210L005R
Meritek
MPTS1812L010R
Meritek
MPTS1812L020R
Meritek
MPTS1812L035
Meritek
MPTS1812L050
Meritek
MPTS1812L11016R
Meritek
MPTS1812L110R
Meritek
MPTS1812L16016R
Meritek

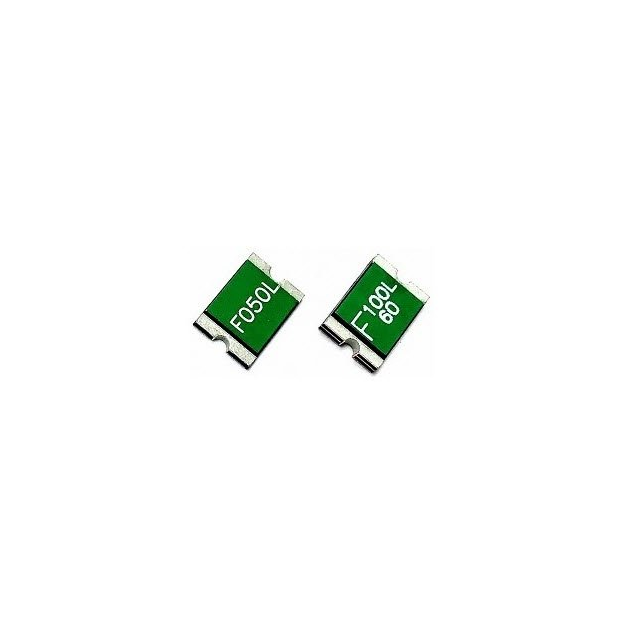

MPTS1812L26016R
