MPTS1210L005R
lmages are for reference only.Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 60V 50 mA Ih Surface Mount 1210 (3225 Metric), Concave
MPTS1210L005R
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Meritek |
| Series | MPTS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 60V |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Trip (It) | 150 mA |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric), Concave |
| Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.045" (1.15mm) |
| Lead Spacing | - |
| Approval Agency | cUL, TUV, UL |
| Time to Trip | 1.5 s |
| Resistance - Initial (Ri) (Min) | 3.6 Ohms |
| Resistance - Post Trip (R1) (Max) | 50 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

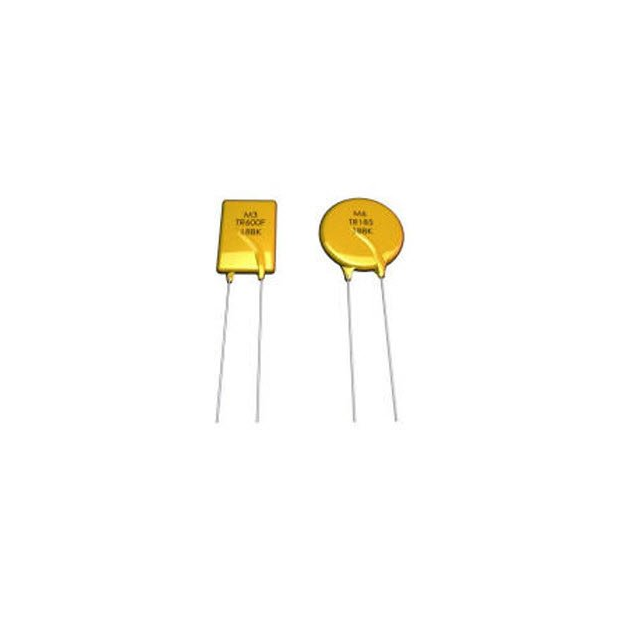

| Part Number | MPTR16V1000 | MPTR16V900 | MPTR30V090 | MPTR30V160 |
| Manufacturer | Meritek | Meritek | Meritek | Meritek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 16V 10A RADIAL | PTC RESET FUSE 16V 9A RADIAL | PTC RESET FUSE 30V 0.9A RADIAL | PTC RESET FUSE 30V 1.6A RADIAL |
| Series | MPTR | MPTR | MPTR | MPTR |
| Packaging | Strip | Bulk | Bulk | Bulk |
