MT321024
lmages are for reference only.MT321024
RELAY GEN PURPOSE 3PDT 10A 24V
Datasheet-
40,964 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
MT321024
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | MT, SCHRACK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 2500VA |
| Coil Current | 50.5 mA |
| Coil Type | Non Latching |
| Features | Test Button |
| Termination Style | Plug In, 11 Pin (Octal) |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 475 Ohms |
| Base Product Number | MT3210 |
| Product Attribute |  |
 |
 |
 |

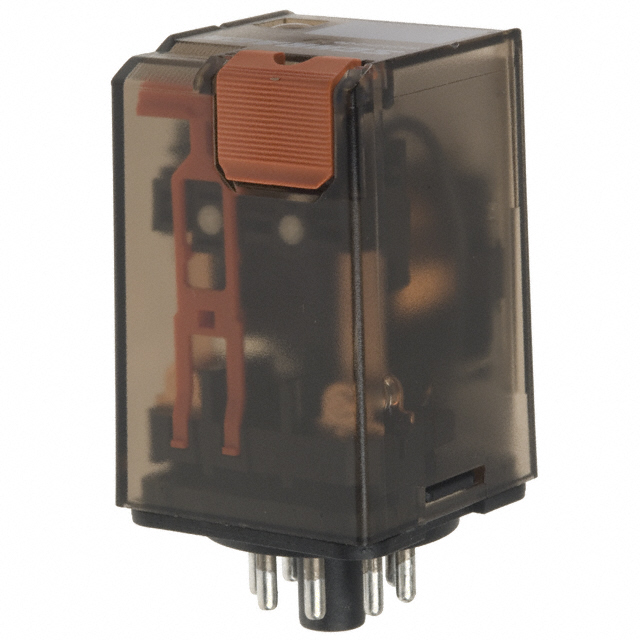

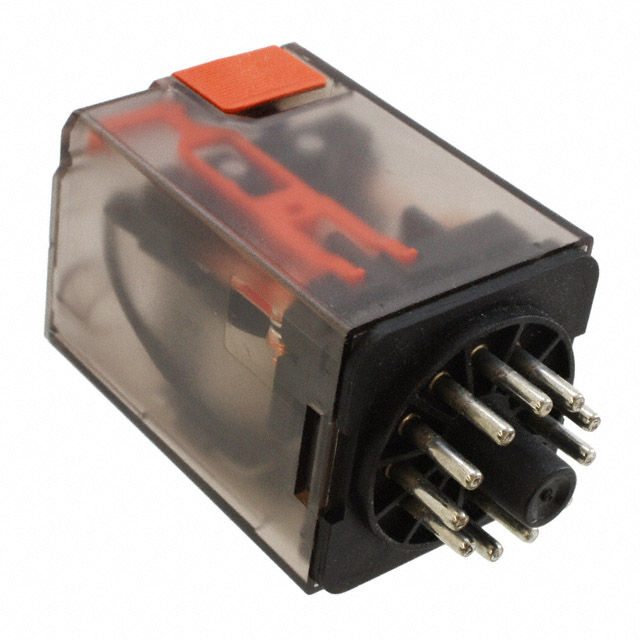

| Part Number | MT321012 | MT3210C4 | MT321220 | MT221012 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE 3PDT 10A 12V | RELAY GEN PURPOSE 3PDT 10A 24V | RELAY GEN PURPOSE 3PDT 10A 220V | RELAY GEN PURPOSE DPDT 10A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tray | Bulk | Tray |
