PCF-112D1M-2,000
lmages are for reference only.PCF-112D1M-2,000
RELAY GEN PURPOSE SPST 25A 12V
Datasheet-
94,547 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
PCF-112D1M-2,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PCF, OEG |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 277VAC, 24VDC - Max |
| Load - Max Switching | 6925VA, 600W |
| Coil Current | 75 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 0.60 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -30°C ~ 55°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, cURus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 160 Ohms |
| Base Product Number | PCF-112 |
| Product Attribute |  |
 |
|
 |

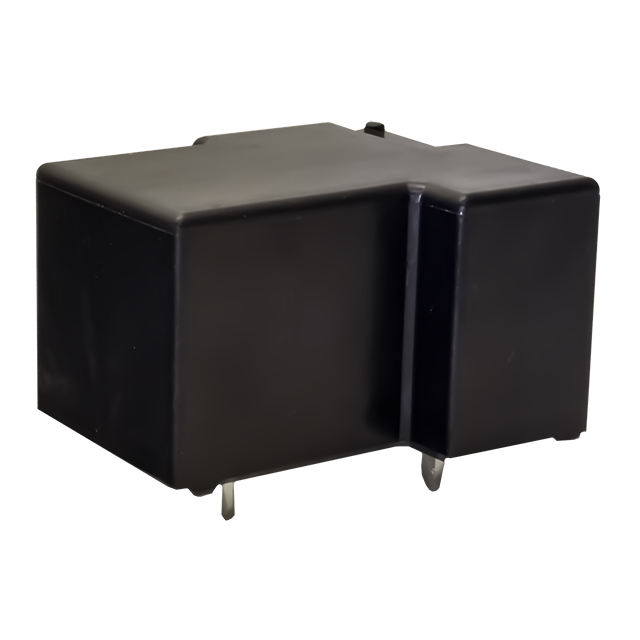

| Part Number | PCF-112D1M,000 | PCF-112D2M,000 | PCF-112D2M-B1 | PR26-9V-S-900-1C-EF |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Same Sky |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY GEN PURPOSE SPST 25A 12V | RELAY GEN PURPOSE SPST 25A 12V | RELAY GEN PURP | 31.8 X 26.9 X 19.1 MM, 9 V, 40 A |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | Same Sky |
| Packaging | Tube | Tray | Bulk | Box |
