PCF-124D2M,000

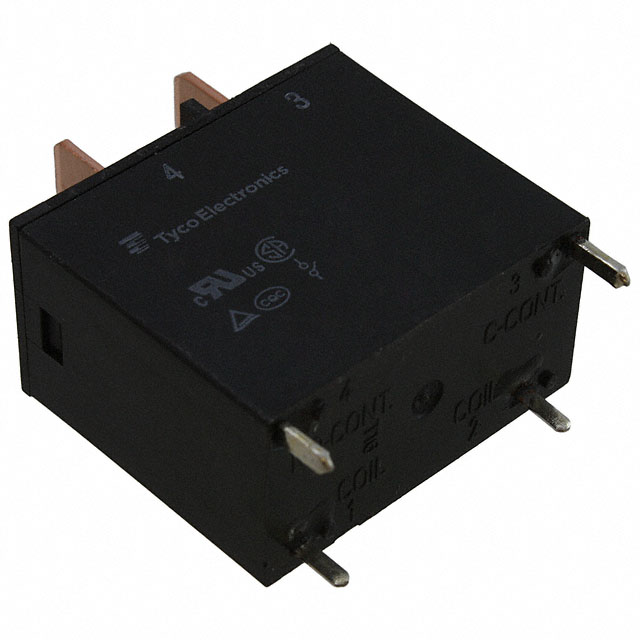

lmages are for reference only.PCF-124D2M,000
RELAY GEN PURPOSE SPST 25A 24V
Datasheet-
38,886 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
PCF-124D2M,000
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PCF, OEG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 25 A |
| Switching Voltage | 277VAC, 24VDC - Max |
| Load - Max Switching | 6925VA, 600W |
| Coil Current | 37.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 10 ms |
| Operating Temperature | -30°C ~ 55°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | CSA, cURus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 640 Ohms |
| Base Product Number | PCF-124 |
| Product Attribute |  |
|
 |
|

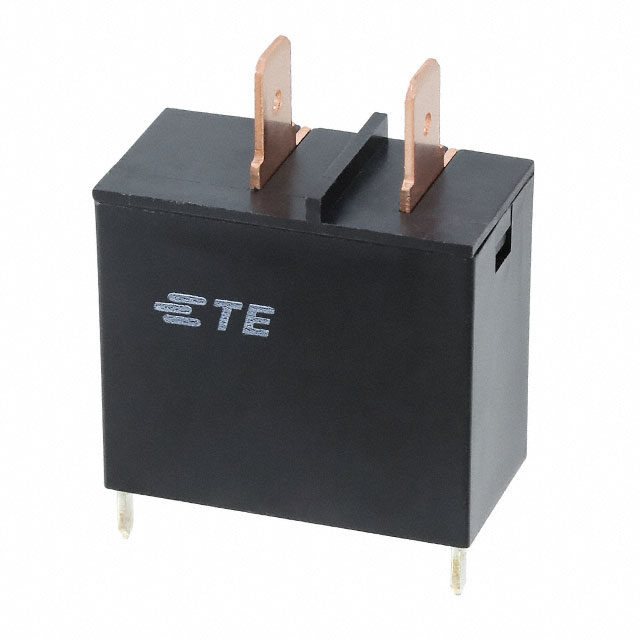

| Part Number | PCF-124D1M,000 | PCF-105D2M,000 | PCF-112D1M,000 | PCF-112D1M-2,000 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE SPST 25A 24V | RELAY GEN PURPOSE SPST 25A 5V | RELAY GEN PURPOSE SPST 25A 12V | RELAY GEN PURPOSE SPST 25A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tube | Tube | Tube |
