PI3PCIE2415ZHE

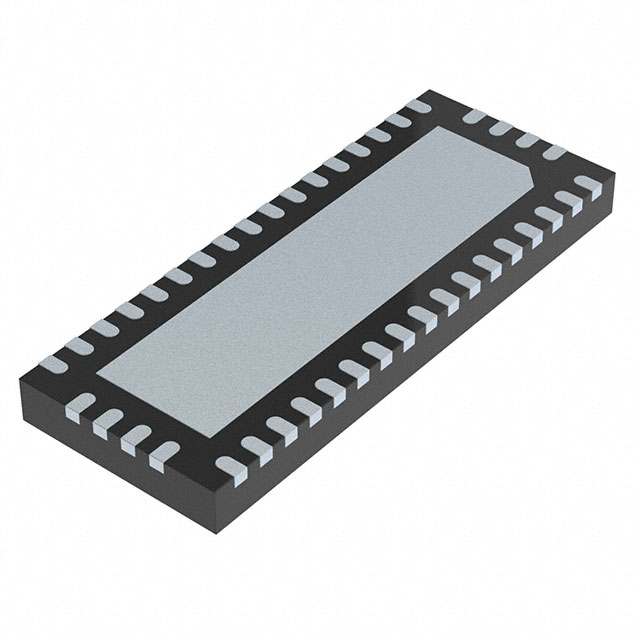

lmages are for reference only.PI3PCIE2415ZHE
IC MUX/DEMUX 2X1 42TQFN
Datasheet42-VFQFN Exposed Pad
81,700 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PCI Express® Switch IC 4 Channel 42-TQFN (9x3.5)
PI3PCIE2415ZHE
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Diodes Incorporated |
| Series | PCI Express®, TDP™ |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Applications | PCI Express® |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | - |
| Number of Channels | 4 |
| On-State Resistance (Max) | 12Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 42-VFQFN Exposed Pad |
| Supplier Device Package | 42-TQFN (9x3.5) |
| Base Product Number | PI3PCIE2415 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PI3PCIE2215ZHE | PI3PCIE2215ZHEX | PI3PCIE2415ZHEX | PI3PCIE3212ZBE+DAX |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MUX/DEMUX 2X1 28TQFN | IC PCI-E MUX/DEMUX 2X1 28TQFN | IC PCI-E MUX/DEMUX 2X1 42TQFN | IC MUX/DEMUX 2:1 3.3V 20TQFN |
| Series | PCI Express®, TDP™ | PCI Express®, TDP™ | PCI Express®, TDP™ | PCI Express® (PCIe) |
| Packaging | Tray | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
