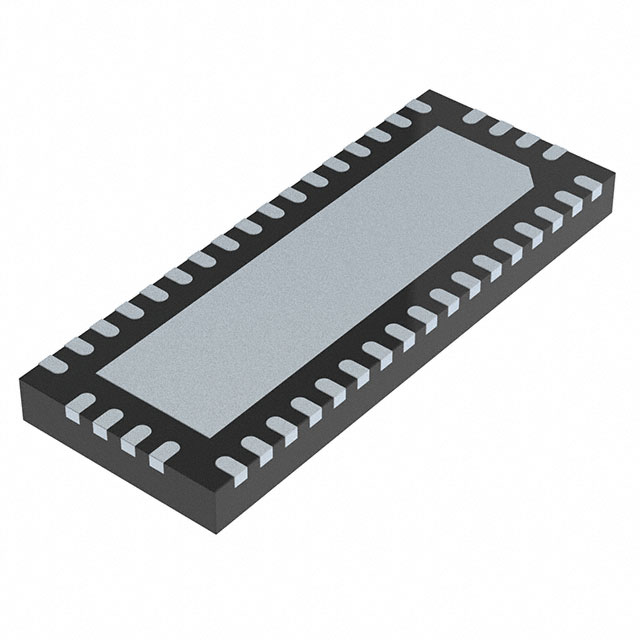

PCI Express® Switch IC 2 Channel 42-TQFN (9x3.5)
PI3PCIE3422ZHE
| Category | Integrated Circuits (ICs) - Interface - Analog Switches Special Purpose |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Applications | PCI Express® |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Switch Circuit | - |
| Number of Channels | 2 |
| On-State Resistance (Max) | 15Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| -3db Bandwidth | 7GHz |
| Features | Bi-Directional |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 42-VFQFN Exposed Pad |
| Supplier Device Package | 42-TQFN (9x3.5) |
| Base Product Number | PI3PCIE3422 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PI3PCIE3422ZHEX | PI3PCIE3212ZBE+DAX | PI3PCIE3212ZBEX | PI3PCIE3242ZLEX |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MUX/DEMUX 8 X SPST 42TQFN | IC MUX/DEMUX 2:1 3.3V 20TQFN | IC MUX/DEMUX 2:1 3.3V 20TQFN | IC MUX/DEMUX 2:2 30TQFN |
| Series | - | PCI Express® (PCIe) | PCI Express® (PCIe) | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
