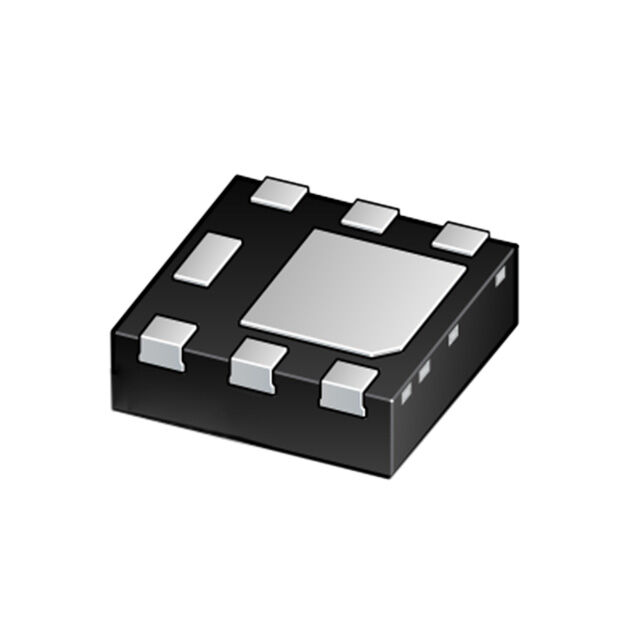

PMPB16R5XNEX
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | TrenchMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 7A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 19mOhm @ 4.5A, 4.5V |
| Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.7W (Ta), 12.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN2020M-6 |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PMPB16EPX | PMPB16XN,115 | PMBF170,215 | PMBF170,235 |
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET P-CH 30V 7.5A DFN2020MD-6 | MOSFET N-CH 30V 7.2A 6DFN | MOSFET N-CH 60V 300MA TO236AB | MOSFET N-CH 60V 300MA TO236AB |
| Series | - | - | TrenchMOS™ | TrenchMOS™ |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
