PT10LH02-224A2020-P10-S

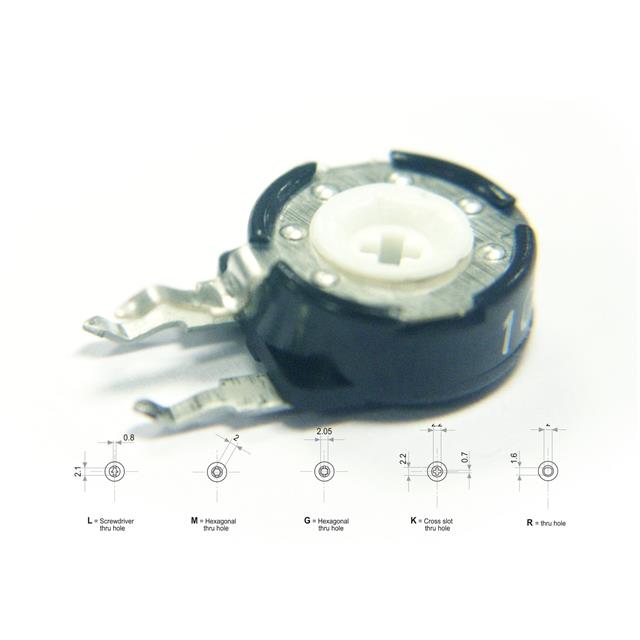

lmages are for reference only.PT10LH02-224A2020-P10-S
TRIMMER 220K OHM 0.15W PC PIN
Datasheet-
22,510 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
PT10LH02-224A2020-P10-S
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT10 |
| Packaging | |
| RoHS Status | ROHS3 Compliant |
| Resistance | 220 kOhms |
| Power (Watts) | 0.15W |
| Tolerance | ±20% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia (10.30mm) |
| Base Product Number | PT10LH02 |
| Product Attribute |  |
 |
 |
 |

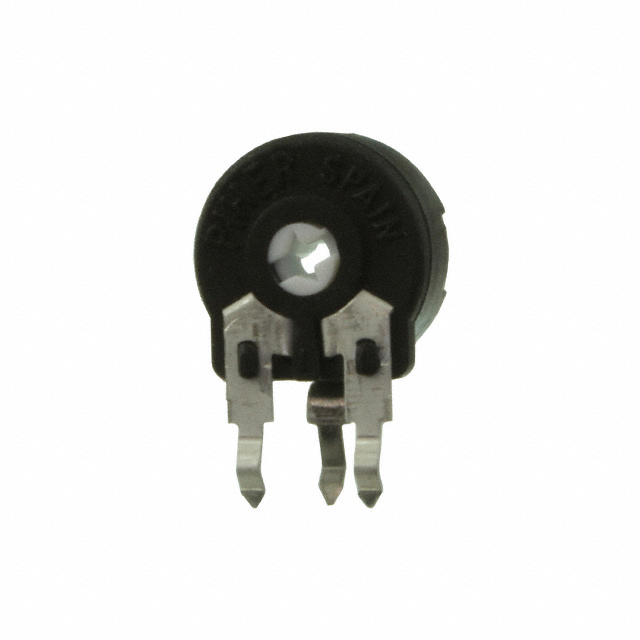

| Part Number | PT10LH02-103A2020-S | PT10LH02-224A2020-S | PT10GH01-504A2020-E-VI-S | PT10GH02-104A2020-VIPM-S |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 10KOHM 0.15W PC PIN SIDE | TRIMMER 220K OHM 0.15W PC PIN | TRIMMER 500K OHM 0.15W PC PIN | TRIMMER 100K OHM 0.15W PC PIN |
| Series | PT10 | PT10 | PT10 | PT10 |
| Packaging | Bulk | Bulk | Bulk |
