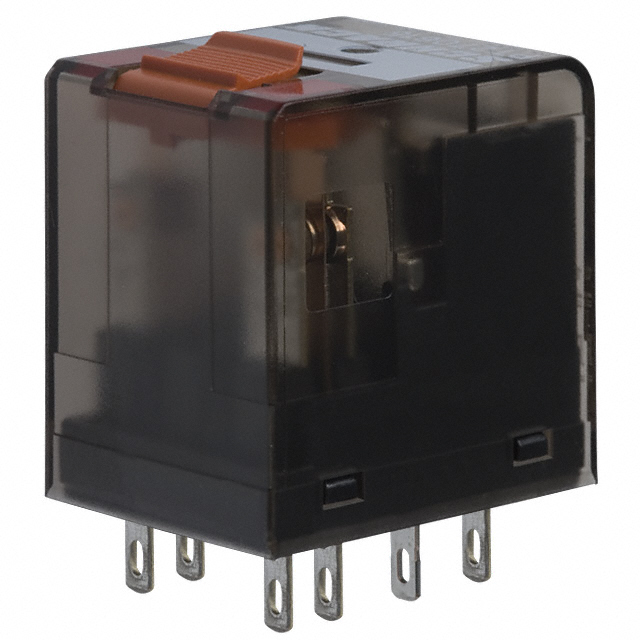

lmages are for reference only.PT380524
RELAY GEN PURPOSE 3PDT 10A 24V
Datasheet-
21,573 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 3PDT (3 Form C) 24VAC Coil Socketable
PT380524
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PT, SCHRACK |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Socketable |
| Coil Voltage | 24VAC |
| Contact Form | 3PDT (3 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4000VA |
| Coil Current | 125 mA |
| Coil Type | Non Latching |
| Features | Mechanical Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Seal Rating | - |
| Coil Insulation | Class F |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 7.2 VAC |
| Operate Time | 15 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 192 Ohms |
| Base Product Number | PT380 |
| Product Attribute |  |
|
|
 |
| Part Number | PT380024 | PT380220 | PT380615 | PT22A012B |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | RELAY GEN PURPOSE 3PDT 10A 24V | RELAY GEN PURPOSE 3PDT 10A 220V | RELAY GEN PURPOSE 3PDT 10A 115V | RELAY GEN PURPOSE DPDT 12A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tube | Tube | Bulk |
