PTH05060WAST
lmages are for reference only.PTH05060WAST
DC DC CONVERTER 0.8-3.6V 36W
Datasheet10-SMD Module
29,001 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 10A 4.5V - 5.5V Input
PTH05060WAST
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | PTH05060 (36W) |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 36 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 1.00" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
|
 |

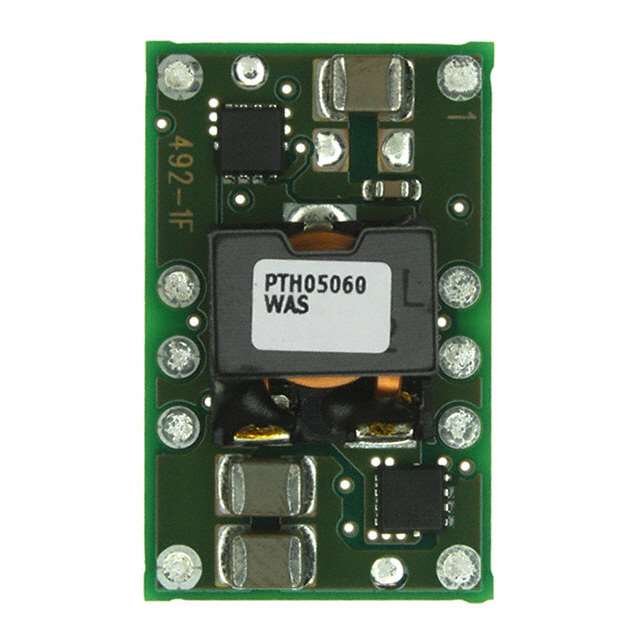

| Part Number | PTH05060WAS | PTH05060WAS | PTH05060WAS | PTH05060WAST |
| Manufacturer | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 0.8-3.6V 36W | DC DC CONVERTER 0.8-3.6V 36W | DC DC CONVERTER 0.8-3.6V 36W | DC DC CONVERTER 0.8-3.6V 36W |
| Series | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
