PTS181216V035
lmages are for reference only.PTS181216V035
PTC RESET FUSE 16V 350MA 1812
Datasheet1812 (4532 Metric), Concave
80,717 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 16V 350 mA Ih Surface Mount 1812 (4532 Metric), Concave
PTS181216V035
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | PTS1812 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 16V |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Trip (It) | 700 mA |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.027" (0.68mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 320 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.5 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

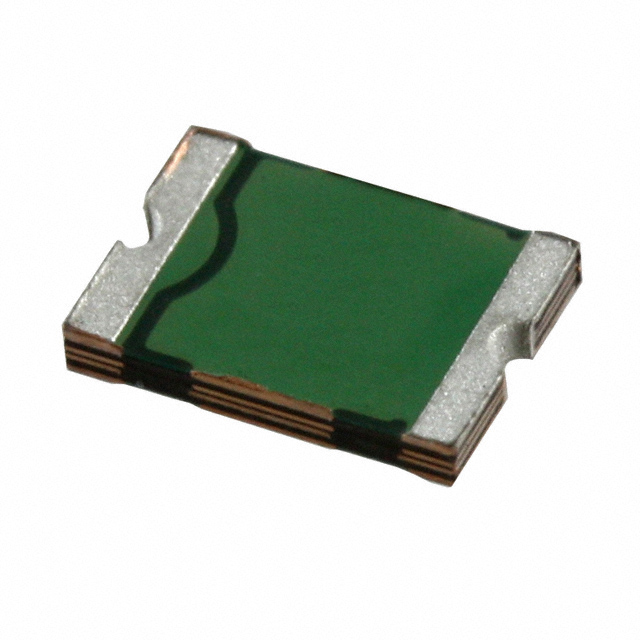

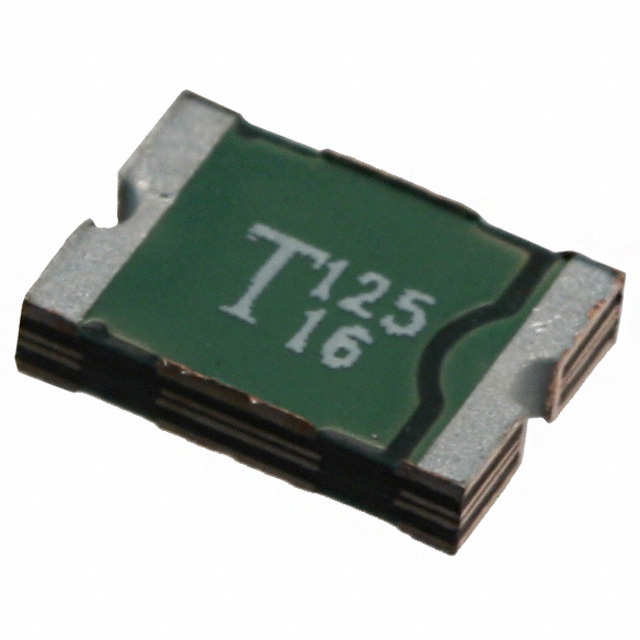

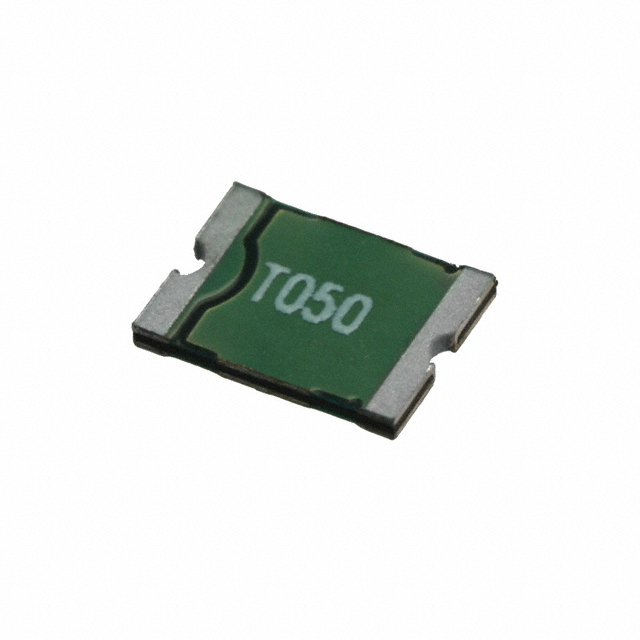

| Part Number | PTS181216V050 | PTS181216V110 | PTS181216V125 | PTS181212V150 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 16V 500MA 1812 | PTC RESET FUSE 16V 1.1A 1812 | PTC RESET FUSE 16V 1.25A 1812 | PTC RESET FUSE 12V 1.5A 1812 |
| Series | PTS1812 | PTS1812 | PTS1812 | PTS1812 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
