PTS181233V110

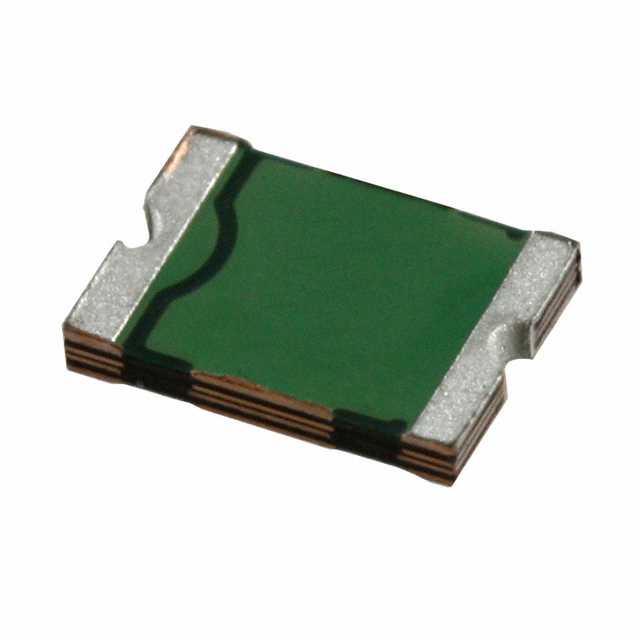

lmages are for reference only.PTS181233V110
PTC RESET FUSE 33V 1.1A 1812
Datasheet1812 (4532 Metric), Concave
70,857 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 33V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
PTS181233V110
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | PTS1812 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | |
| Type | Polymeric |
| Voltage - Max | 33V |
| Current - Hold (Ih) (Max) | 1.1 A |
| Current - Trip (It) | 2.2 A |
| Current - Max | 20 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.047" (1.20mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 500 ms |
| Resistance - Initial (Ri) (Min) | 60 mOhms |
| Resistance - Post Trip (R1) (Max) | 200 mOhms |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PTS181233V075 | PTS181212V150 | PTS181213V075 | PTS181216V035 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 33V 750MA 1812 | PTC RESET FUSE 12V 1.5A 1812 | PTC RESET FUSE 13.2V 750MA 1812 | PTC RESET FUSE 16V 350MA 1812 |
| Series | PTS1812 | PTS1812 | PTS1812 | PTS1812 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
