R10-E2X4-V700
lmages are for reference only.R10-E2X4-V700
RELAY GEN PURPOSE 4PDT 5A 24V
Datasheet-
97,105 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Through Hole
R10-E2X4-V700
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | R10 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 120VAC - Nom |
| Load - Max Switching | - |
| Coil Current | 34.3 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -55°C ~ 75°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 700 Ohms |
| Base Product Number | R10-E2X4 |
| Product Attribute |  |
 |
 |
 |

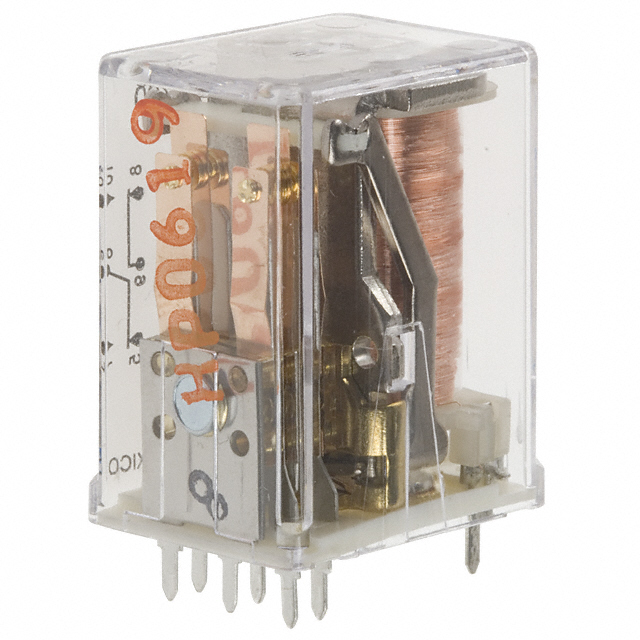

| Part Number | R10-E2X4-V185 | R10-E2X2-S3.2K | R10-E2X2-S800 | R10-E2X2-V185 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE 4PDT 5A 12V | RELAY GEN PURPOSE DPDT 5A 24V | RELAY GEN PURPOSE DPDT 5A 12V | RELAY GEN PURPOSE DPDT 5A 12V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
